Universal Transmitter SC Series

SC-U1(E)[Parts No. 05324]

New transmitter which provide excellent usability and operability.
Our sensors can be connected multiply.

Features

The transmitter that can measure a variety of water quality items and have excellent system expandability

Intuitive and easy to understand operation

The iconic control buttons and display screen make it easy for anyone to set up.
Control panel and monitor screen that can be seen clearly even in the dark.

User-friendly wiring

Screwless terminal block.

Easy-to-understand terminals and easy-to-wire the transmitter.

A color nameplate is attached to the terminal block so that the wiring color can be checked by color, preventing incorrect wiring.

■Water jet proof type (IP65)

Our sensor line-up that can be connected

Turbidity Checker TC-D Series

It is compact, requires no complicated setup or maintenance, and allows for continuous monitoring. Measurement range: 0 - 3000 FTU.

Turbidity Checker (Middle Range) TSC-D Series

High cost performance model with separate transmitter and detector.

Turbidity Checker (Ultra Low Range) TC Series

90-degree detector.
Measure turbidity to four decimal places.
It enables you to monitor the quality of water which is good to drink or not.

SS Checker (High Range) TS-D Series

Pursuing a balance between required functions and cost, and delivering a high level of cost performance.

SS Checker (Middle Range) TS-D Series

Measurement of SS and permeability can be switched.
*Simultaneous measurement is not possible.
Compact size of Φ32 mm. Easy maintenance with wiper cleaning method.
We have achieved maintenance-free compact size.

Optical Dissolved Oxygen Sensor DOS Series

Easy Installation, Simple Operation. Maintenance long-term unnecessary.

pH Sensor SE-pH-D Series

Assembled sensor with Digital output for pH.
Easy to replace the electrode.
No need of any tool when replacing.

ORP Sensor SE-ORP-D Series

Assembled sensor with Digital output for ORP.
Easy to replace the electrode.
No need of any tool when replacing.

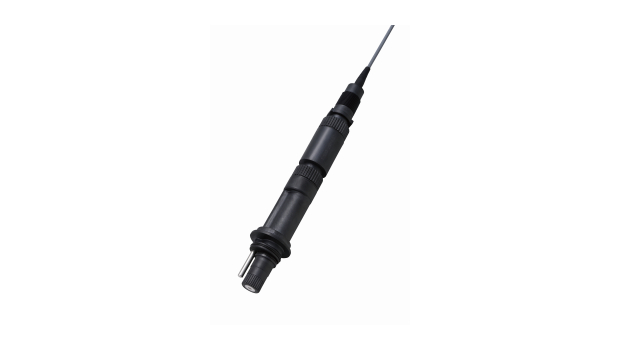

Conductivity Sensor SE-Cond-D Series

Assembled sensor with Digital output for Conductivity

Options

Sensor input expansion/output expansion board：SC-U-EB

[Parts No. 05322]

You can add 2 channels of sensor, 2 channels of 4-20 mA output, and 4 channels of relay output when attaching this to SC-U1(E).

Please go to the support page to get the necessary files in PDF.

Specifications
Dimensions

Model	SC-U1
Power supply voltage	100–240 VAC ±10% 50/60 Hz
Power consumption	1 sensor installed: 20 VA max. (normal), up to 35 VA 2 sensors installed: 25VA max. (normal), up to 40 VA 4 sensors installed (using SC-U-EB): 30 VA max. (normal), up to 50 VA (analog signal output 20 mA)
Output	Output Signal output: 2 channels Using SC-U-EB: 4 channels 4-20 mA (resistance load 600Ω max.)
Output	Relay output: 4 channels Using SC-U-EB: 8 channels Non-voltage C contact (Capacity: 240 VAC, 1A resistance load)
Input	Sensor: 2 channels SC-E-UB used: 4 channels
Input	Gateway: 1 channel
Operating temperature	-20 to 50°C, Humidity 95%Rh or less (Avoid direct sunlight)
Main material	Polycarbonate
Dimensions	Approx. 162(H) x 240(W) x 109(D) mm
Weight	Approx. 1.8 kg (including mounting bracket)
Degree of protection	IP65 (jetproof type)

*Specifications are subject to change without prior notice.

(Unit: mm）
