Turbidity Sensor TC-D Series
It is compact, requires no complicated setup or maintenance, and allows for continuous monitoring.
Measurement range: 0 - 3000 FTU.
| Products Name |
|---|
| TC-3000-D [Parts No. 05327] |
| TC-3000SP-D [Parts No. 05328],[for sea water] |
Features
 |
Built-in wiping cleaning system certainly keeps lenses clean. Check and clean the window surface once every month. |
 |
"Easy to clean" scratch-proof sapphire glass applies to the optical windows. The optical windows are made of hard-to-scratch sapphire glass. It enables you to scrub the windows surface without problems. |
 |
Compact size can fit into any installation site. The compact design makes it possible to install any places. |
Applications
The TC-3000－D can be installed at various sites throughout the factory.
1.Monitoring acquisition of water for factory use
By monitoring the turbidity of the water when it arrives, we can prevent trouble in the event that there is a sudden shift in turbidity down the line.
2.Coagulant control
By firmly establishing the correct concentration of wastewater, we can insert the appropriate amount of cleaning agent, allowing us to achieve a stable water quality.
3.Monitoring the sludge-liquid level
in the settling tank enables the monitoring the sludge-liquid level.
Installing theSensors at two or three different depths enhances the sludge-liquid level check at the surface, allowing the sludge draining control.
4.Monitoring the final discharged water
This allows for final monitoring of the treated water as flows out into the river.
Installation
Installation examples
*2: Mount the detector so that it remains submerged under the water surface even if the water level fluctuates
surface even if the water level fluctuates.
Extension of sensor cable
The standard length of the sensor cable is 9 m. To extend the cable, refer to the following.
To extend the cable, connection using pull box is recommended.
Transmitter
Display item
Set the unit of turbidity to show on the SC-U1 display.
Options
Mounting Attachment: TA-1
[Parts No.05039]
By mounting the turbidity sensor and SS sensor to the pipe, it prevents hitting the wall or facility equipment and rotating it. Please use it when the water current is fast.
Applicable pipe: Stainless steel pipe for piping 25 A (OD 34 mm)
Material: S30400
*Please prepare the pipe for installation by customer
Support bracket: CJ-1
Hanging chain: TA-2
CJ-1 [Parts No.05033]
TA-2 [Parts No.05067]
It is a metal fitting for hanging the sensor.（CJ-1）
It is a chain for suspending the sensor.（TA-2）
Maintenance kit: TC-MK
[Parts No.05038]
It is a replacement blade of the wiper cleaning device. Please exchange once a year as a guide.
Component
●Wiper blade × 2
●Cleaning brush × 1
●Detection window Cleaning paper × 2
●Manual × 1
Specifications

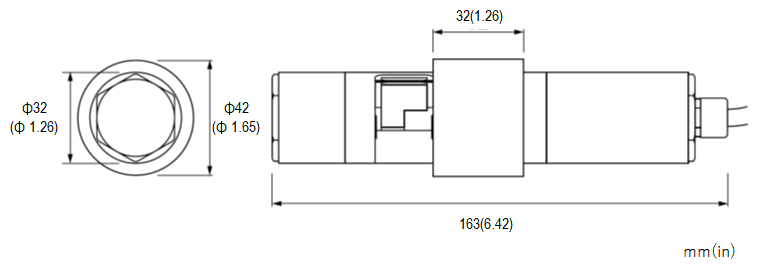

Dimensions
| Model | TC-3000-D | TC-3000SP-D (for seawater) |
|---|---|---|
| Measuring range | 0 - 3000 FTU | |
| Display resolution | 0.0 - 99.9 FTU: 0.1 FTU 100 - 499 FTU: 1 FTU 500 - 3000 FTU: 5 FTU |
|
| Power supply | 24 VDC ±10% | |
| Current consumption | Standard: 15 mA max. Cleaning: 130 mA max. |
|
| Communications (function) | MODBUS (RTU/ASCII) | |
| Cleaning system | Both sided swing wiper cleaning system | |
| Operating temperature | 0 to 40℃ (unfrozen) | |
| Major material | Main body: SUS316L | Main body: SUS329J4L |
| Sapphire glass, fluorocarbon rubber, EPDM, POM | ||
| Dimensions | Φ32 × 163 mm (excluding Hanging Attachment) | |
| Weight | Approx. 930 g | |
| Degree of protection | IP68, maximum depth of 2 meters (underwater type) | |
| Sensor cable length | 9 m | |
