ORP Sensor SE-ORP-D Series

Assembled sensor with Digital output for ORP.

Products Name
SE-ORP-D [Parts No. 05331]
  1. Features
  2. Specifications/Dimensions

Features

  • Easy to replace the electrode.
  • No need of any tool when replacing.

Application

ORP measurement of wastewater
Wastewater treatment
ORP measurement at water purification plants

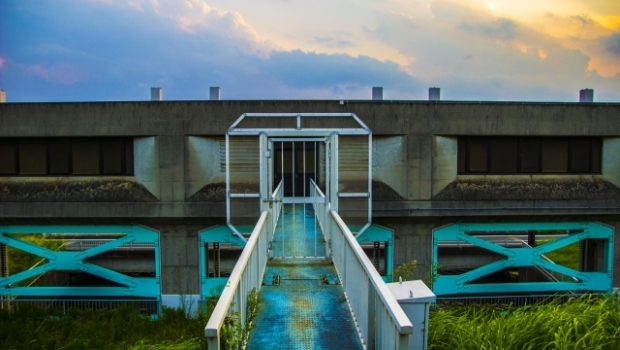

Water purification plant

Installation

Installation example

Diagram of an example installation of a ORP mater.
When installing the sensor in locations with high flow rates, make sure that the mounting brackets are sufficiently strong.
* The PVC pipe VP-20 and a standard fitting to be prepared by the user.

Extension of sensor cable

The standard length of the sensor cable is 6 m. To extend the cable, refer to the following.
To extend the cable, connection using pull box is recommended.

Sensor cable extension diagram for ORP meters.
For the sensor cable, use a shielded cable with a nominal cross-sectional area of 0.2 to 1.25 mm2.

Transmitter

Universal Transmitter SC Series

Universal Transmitter SC Series

New transmitter which provide excellent usability and operability. Our sensors can be connected multiply.

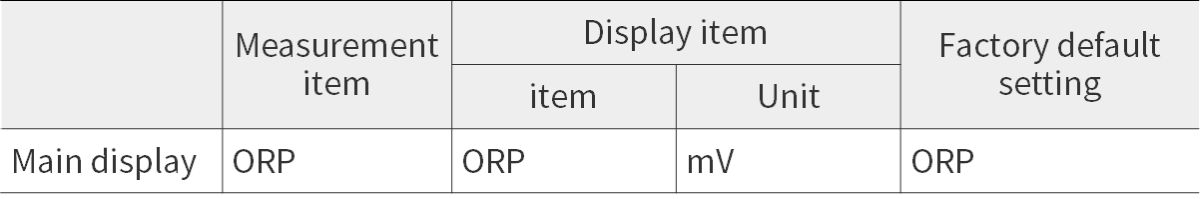

Display item

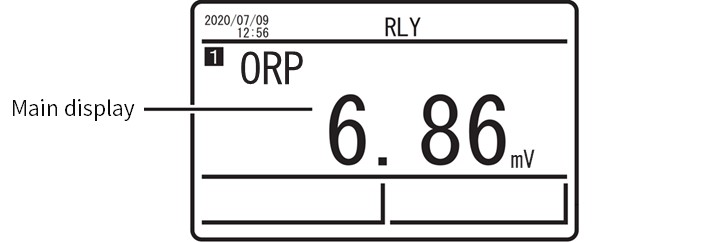

Image of the SC-U1 display screen
Display setting item

Option

Replacement electrode: <br> SE-ORP-EL

Replacement electrode:
SE-ORP-EL

[Parts No. 05334]

Please go to the support page to get the necessary files in PDF.

  • Specifications

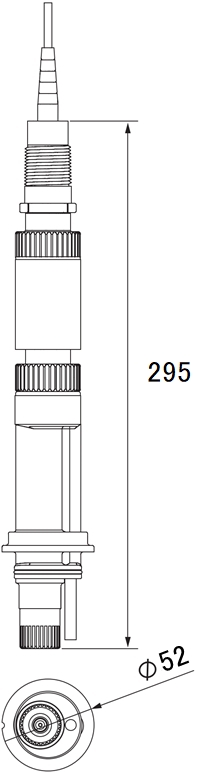

  • Dimensions

Model SE-ORP-D
Measuring item ORP
Measurement range -1500 to 1500 mV
Display resolution 1 mV
Power supply voltage 6 to 40 VDC
Current consumption 5 mA
Communications (function) MODBUS
Operating temperature 0 to 60°C
Dimensions Φ52 × 295 mm
Weight 0.57 kg
Cable length 6 m
Main material PPS
*Specifications are subject to change without prior notice.
