Conductivity Sensor SE-Cond-D Series

Assembled sensor with Digital output for Conductivity.

Products Name
SE-Cond-D [Parts No. 05329]
  1. Features
  2. Specifications/Dimensions

Features

  • Easy to replace the electrode.
  • No need of any tool when replacing.

Application

Natural environment: Measuring the conductivity of rivers
Natural environment
Wastewater: Measure the conductivity of wastewater
Wastewater

Installation

Installation example

Diagram of an example installation of a conductivity meter.
When installing the sensor in locations with high flow rates, make sure that the mounting brackets are sufficiently strong.
* The PVC pipe VP-20 and a standard fitting to be prepared by the user.

Extension of sensor cable

The standard length of the sensor cable is 6 m. To extend the cable, refer to the following.
To extend the cable, connection using pull box is recommended.

Diagram of an example installation of a conductivity meter.
For the sensor cable, use a shielded cable with a nominal cross-sectional area of 0.2 to 1.25 mm2.

Transmitter

Universal Transmitter SC Series

Universal Transmitter SC Series

New transmitter which provide excellent usability and operability. Our sensors can be connected multiply.

Display item

Set the conductivity items to display as the main display of SC-U1.

Image of the SC-U1 display screen
Display setting items

Option

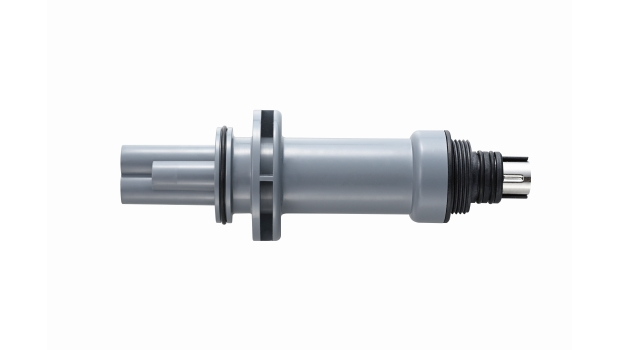

Replacement electrode: Cond electrode

Replacement electrode: Cond electrode

[Parts No. 05335]

Please go to the support page to get the necessary files in PDF.

  • Specifications

  • Dimensions

Model SE-Cond-D
Measurement item Conductivity
Measurement range 0.00 to 10.00 mS/cm
0.000 to 1.000 S/m
0.0 to 30.0 g/L
Display resolution 0.01 mS/cm
0.001 S/m
0.1 g/L
Power supply 6 to 40 VDC
Current consumption ≤7 mA
Communications (function) MODBUS
Operating temperature 0 to 60°C （unfrozen）
Dimensions Φ52 × 283 mm
Weight 0.53 kg
Cable length 6 m
Main material PPS
*Specifications are subject to change without prior notice.

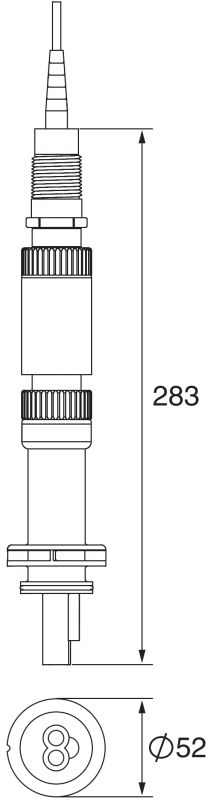

Dimentions: Conductivitymeter SE-Cond-D

mm
