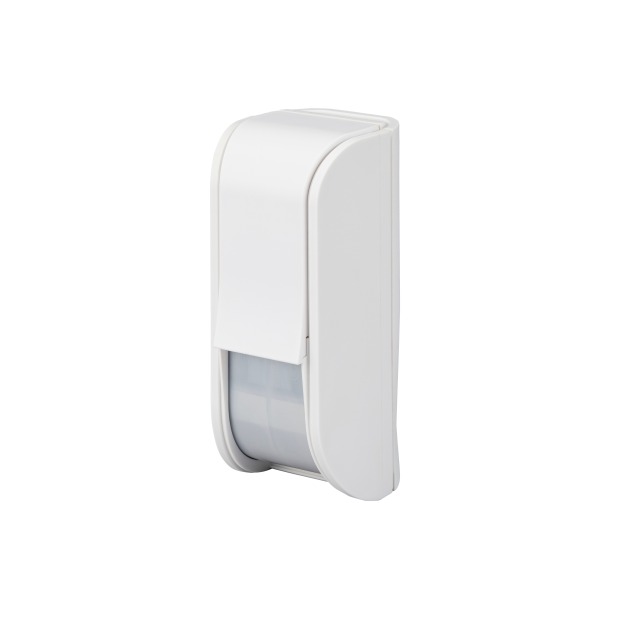

High Mount Outdoor Curtain PIR Detector : TXI Series

12 m (40 ft.) curtain detection area for precise wall-to-window coverage
Flexible installation from 2.2 to 4.0 m height

Wired Model
TXI-ST [Triple AND PIR Detection range 12m]
TXI-DAM-X5 [Triple AND PIR + Microwave(10.525NHz) + Anti-masking / Detection range 12m]
TXI-DAM-X8 [Triple AND PIR + Microwave(10.578NHz) + Anti-masking / Detection range 12m]
TXI-DAM-X9 [Triple AND PIR + Microwave(9.425NHz) + Anti-masking / Detection range 12m]
Battery Operated Model
TXI-R [Triple AND PIR Detection range 12m]
TXI-RDAM-X5 [Triple AND PIR + Microwave(10.525NHz) + Anti-masking / Detection range 12m]
TXI-RDAM-X8 [Triple AND PIR + Microwave(10.578NHz) + Anti-masking / Detection range 12m]
TXI-RDAM-X9 [Triple AND PIR + Microwave(9.425NHz) + Anti-masking / Detection range 12m]

Color Variations

  • White

Features

Minimal design

A palm-sized, compact and minimal design that blends naturally into residential settings without compromising aesthetics.
With support for installation heights of up to 4.0 meters, it delivers exceptional flexibility and ease of use.
Featuring the world’s first Triple AND logic, it dramatically improves the ability to distinguish between small animals and humans.

Easy detection area setup

A range of brackets is available to suit different installation heights, making it easy to configure the optimal detection area for each environment.
Down zone ON/OFF and detection distance adjustments can be carried out smoothly and with ease.
With the optional bracket, adjustments in all directions — up, down, left, and right — become even more flexible.

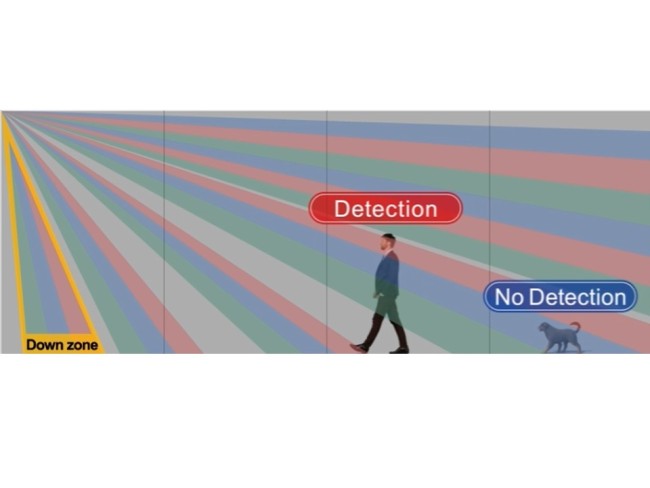

Triple AND logic


Triple AND logic and optimized area design greatly reduce false alarms caused by small animals and ambient light. It achieves an excellent balance between human detection performance and pet tolerance.

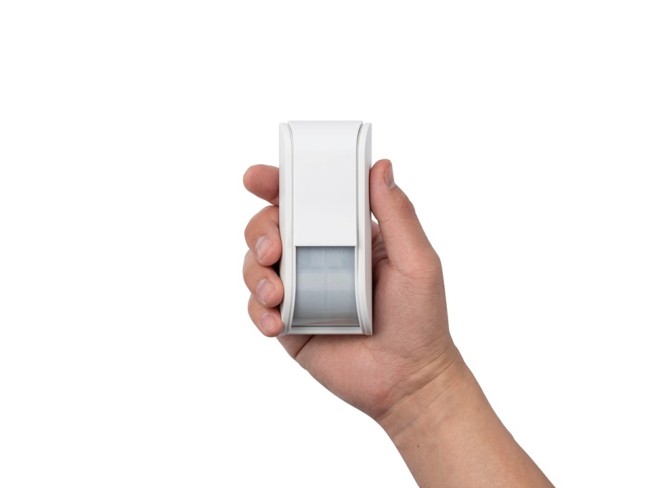

Sleek and compact design


Palm-sized and stylish, designed to blend in with your home without compromising its look.

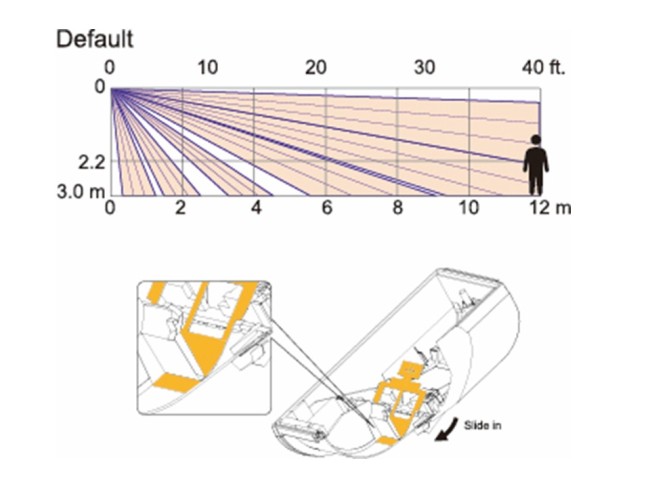

Detection distance adjustment


By inserting the included area adjustment plate into the main unit, three detection distance can be easily switched.

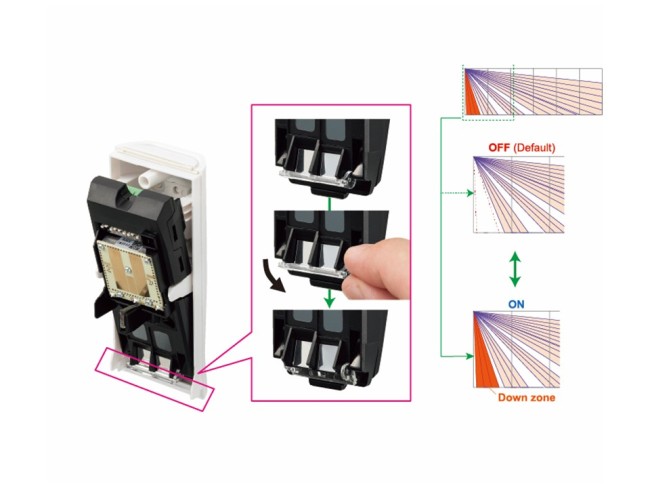

Selectable Down Zone


Palm-sized and stylish, designed to blend in with your home without compromising its look.

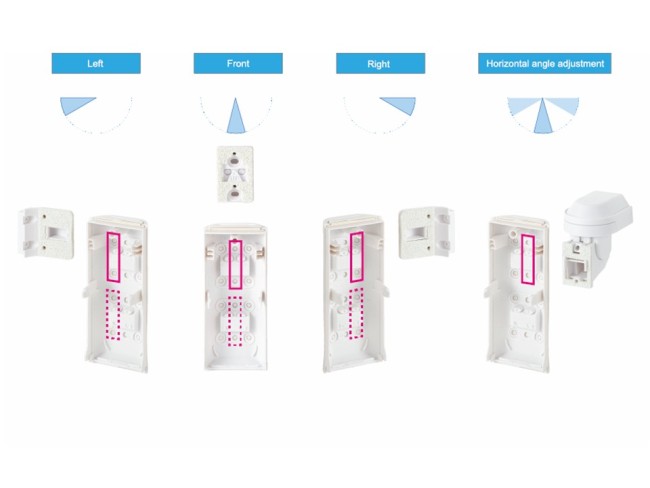

Optimal installation


Installation requires the included bracket, ensuring secure and proper installation for both hidden and exposed wiring. Ceiling mount available with optional bracket(TXI-BKT).

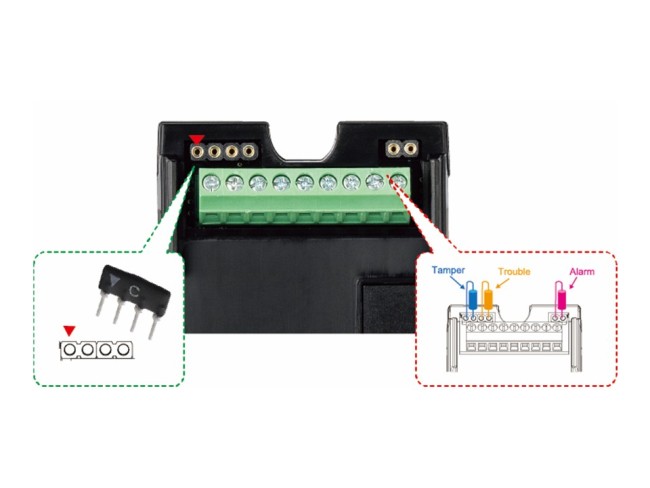

EOL compatible


EOL terminals for faster and easier wiring.

Application Examples

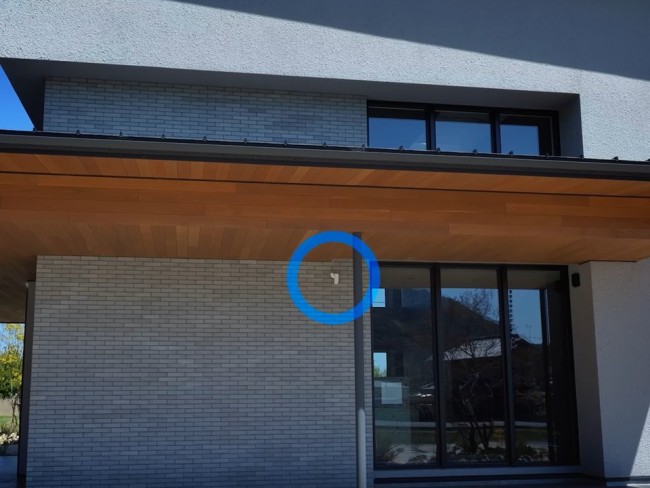

Residences
Residences

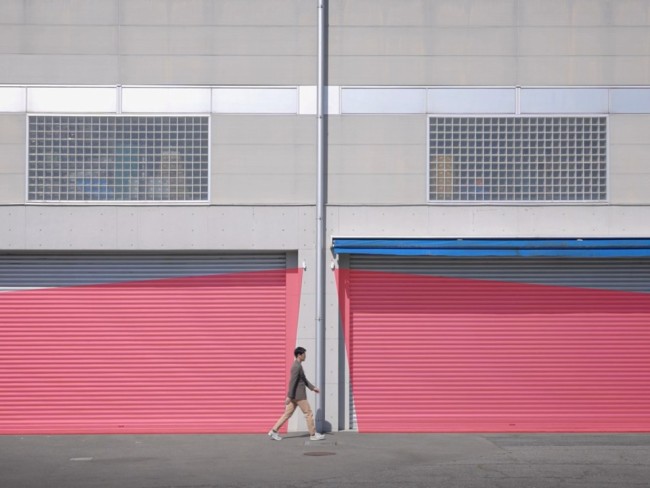

Factories and Buildings
Factories and Buildings

Options

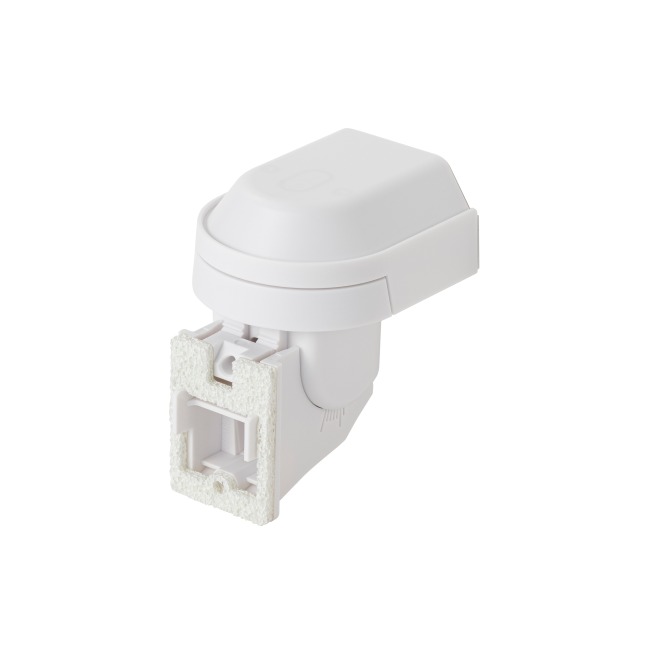

Highly Flexible Bracket : TXI-BKT

Highly Flexible Bracket : TXI-BKT

TXI-BKT is a Highly Flexible Bracket for wall and ceiling mount
Selectable Plug-In End Of Line Unit : PEU

Selectable Plug-In End Of Line Unit : PEU

For WXS, WXI, VXS, VXI, BXS, CDX, FMX, TXI

Please go to the support page to get the necessary files in PDF and/or DXF.

  • Coverage

  • Specifications

  • Dimensions

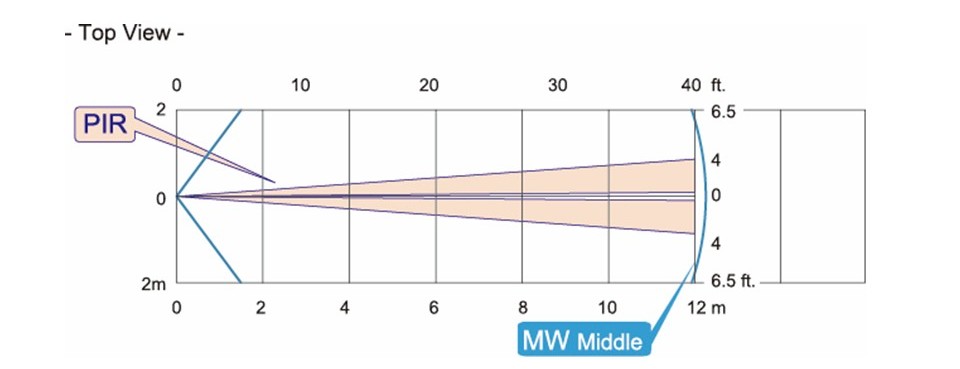

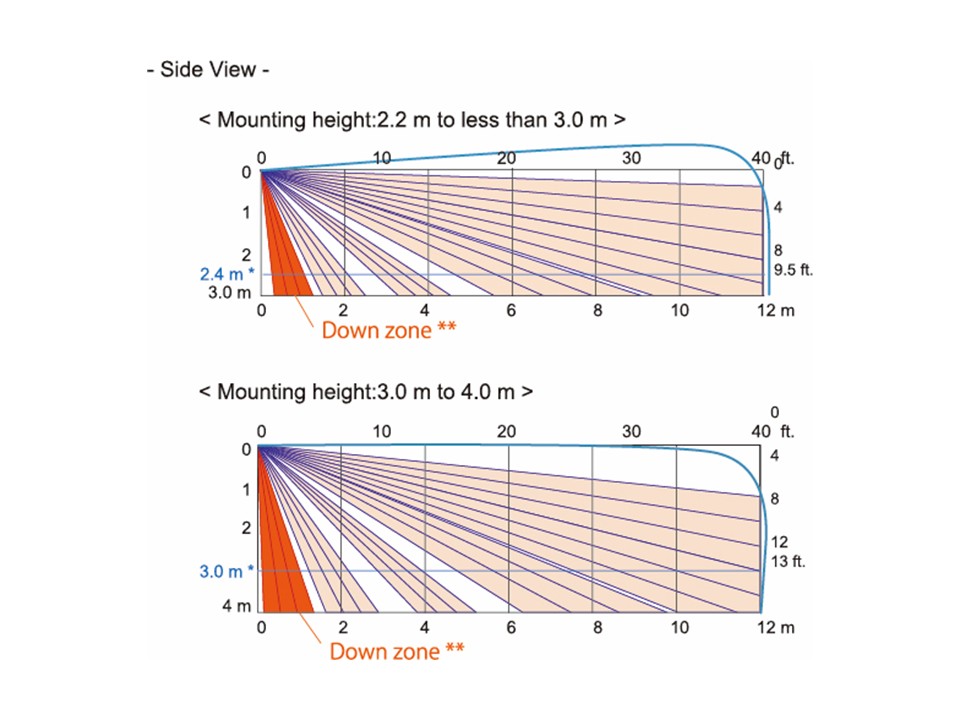

Coverage
Models TXI-ST TXI-DAM-X5/-X8/-X9 TXI-R TXI-RDAM-X5/-X8/-X9
Installation Wall (with included brackets [side/back])
Wall, Ceiling (with optional bracket: TXI-BKT)
Detection method Passive infrared Passive infrared and Microwave Passive infrared Passive infrared and Microwave
Coverage 12 m x 2.4 m (40' x 8')
Mounting height 2.2 to 4.0 m (7'2" to 13'2")
Warm-up period 60.0 ± 0.5 s
Alarm period 2.0 ± 0.5 s
LED indicator Switchable ON/OFF
Red LED
Warm-up (Blinks for 60 s)
Alarm (Lights for 2 s)
Walk test mode end (fast blinks for 5 s) 		Switchable ON/OFF
Red LED
Warm-up (Blinks for 60 s)
Alarm (Lights for 2 s)
Masking detection (Blinks 3 times & repeats)
Walk test mode end (fast blinks for 5 s) 		Switchable ON/OFF
Red LED
Warm-up (Blinks for 60 s)
Alarm (Lights for 2 s)
Walk test mode end (fast blinks for 5 s) 		Switchable ON/OFF
Red LED
Warm-up (Blinks for 60 s)
Alarm (Lights for 2 s)
Masking detection (Blinks 3 times & repeats)
Walk test mode end (fast blinks for 5 s)
Power input 9.5 to 16 VDC 3.0 VDC
Current draw 8 mA (normal)
16 mA (max.) at 12 VDC		 12 mA (normal)
19 mA (max.) at 12 VDC		 14 µA (Stand-by)
5 mA (max.) at 3.0 VDC		 19 µA (Stand-by)
6 mA (max.) at 3.0 VDC
Alarm output N.C. 24 VDC 0.1 A max. (Resistive load) Solid-state switch, 10 VDC 0.01 A max.
Trouble output - N.C. 24 VDC 0.1 A max. (Resistive load) - Solid-state switch, 10 VDC 0.01 A max.
Tamper output N.C. 24 VDC 0.1 A max. (Resistive load)
Open when either the cover or main unit is removed		 Solidstate switch, 10 VDC 0.01 A max.
Open when either the cover,main unit is removed		 Solidstate switch, 10 VDC 0.01 A max.
Open when either the cover,main unit is removed,and masking detection
Operating temperature -30°C to +60°C (-22°F to +140°F) -20°C to +45°C (-4°F to +113°F) -30°C to +60°C (-22°F to +140°F) -20°C to +45°C (-4°F to +113°F)
Temperature compensation Digital (SMDA)
Environmental humidity 95% max. (No alarm)
RF interference No alarm 10 V/m
International protection IP55
Dimension H: 119.5 x W: 52.0 x D: 54.5 mm H: 119.5 x W: 54.4 x D: 70.2 mm
Weight Approx. 122 g (4.3 oz) Approx. 142 g (5.0 oz) Approx. 135 g (4.8 oz) Approx. 155 g (5.5 oz)

＊ Specifications and designs are subject to change without prior notice.

``

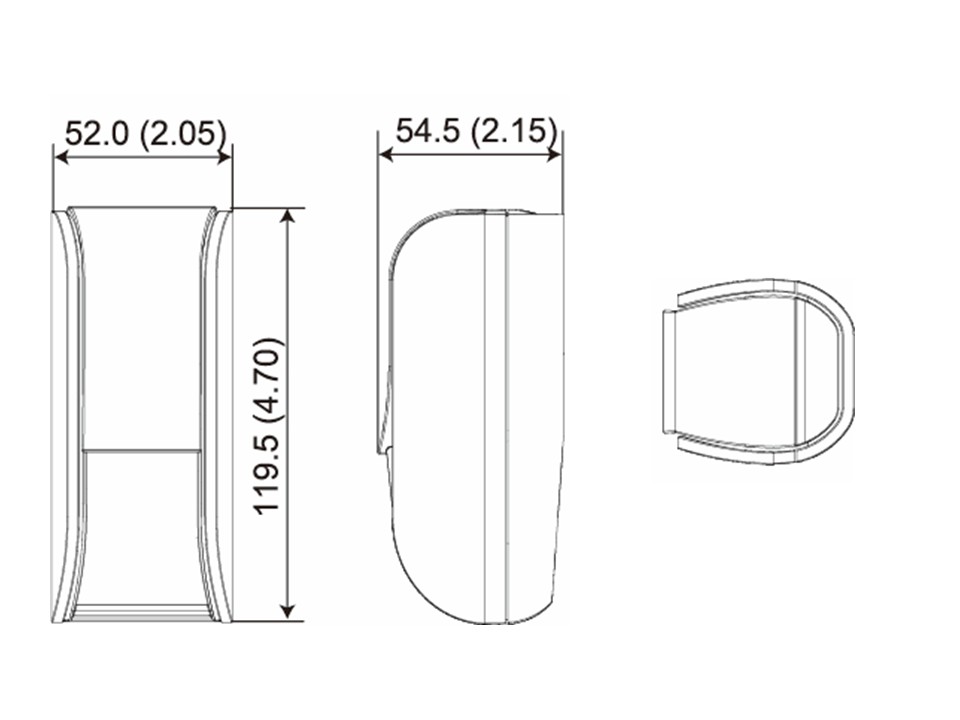

TXI-ST/AM

Dimensions

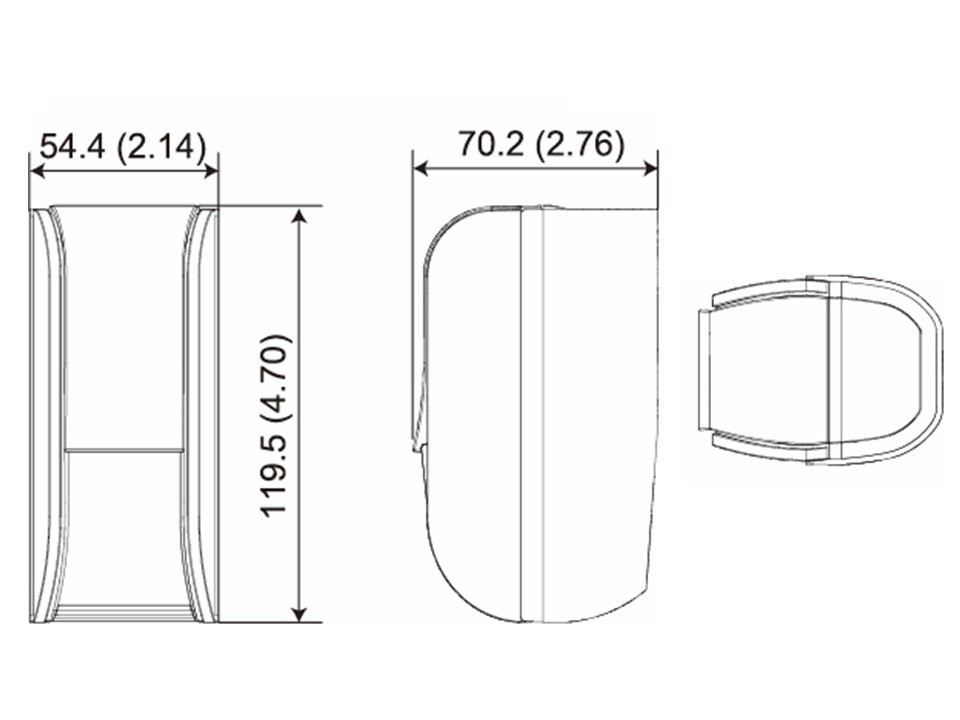

TXI-R/RAM

Unit（mm）
