PIR Detector / PIR Microwave Combination Detector : CDX Series
CDX-AM : A Grade 3 (EN50131-2-2) PIR with a range of 15 x 15 meters.
CDX-NAM : A Grade 3 (EN50131-2-2) narrow-focus PIR with a range of 2 x 24 meters.
CDX-DAM : A Grade 3 (EN50131-2-4) dual-technology with a range of 15 x 15 meters.
• CDX-DAM-X5 : 10.525 GHz
• CDX-DAM-X8 : 10.587 GHz
| Products Name |
|---|
| CDX-AM [Active IR anti-masking] |
| CDX-NAM [Long range with active IR anti-masking] |
| CDX-DAM [Dual technology with active IR anti-masking] |
The CDX series are highly-reliable Grade 3 Indoor detectors for high-risk applications such as industrial and banking sites. All include many of the Optex tried-and-trusted features such as double conductive shielding and digital anti-masking technologies and it can support plug-in EoL(PEU) unit. This option can be compatible with a wide variety of control panels.
Features
- Complies with EN50131-2-4 (CDX-DAM only)
- Complies with EN50131-2-2 (CDX-DT&DAM only)
- Digital quad zone logic
- Active IR digital anti-masking
- Tough microwave module (CDX-DT&DAM only)
- Sharply-directed microwave technology (CDX-DT&DAM only)
- Interchangeable main unit
Digital quad zone logic
CDX series has 82 dense zones. In the detection coverage, 4 or more zones must be crossed to distinguish between human and small animal detection.
In addition, newly developed digital MPU "CORE PLATFORM" provides more accurate detection.
Active digital IR anti-masking
CDX series uses AIR technology to detect masking. To realize a stable performance, CDX series differentiate between true masking and other masking caused by environmental changes such as dust/dirt adhesion, temperature changes and direct light by optimizing it's sensitivity.
Plug-in EOL unit(OPTION)
3 types of signals-Alarm, Trouble and Tamper - can be recognized by Plug-in EOL unit. Only a simple plug-in setting is required to enjoy this function.
Sharply-directed MW technology (CDX-DAM only)
Conventional MW technology can emit an unwanted detection area. Sharply-directed MW technology eliminated those areas to create detection area close to PIR.
Tough microwave module
Most of combination detectors use an universal MW module. OPTEX developed an original MW module specially designed for security detector.This stabilize the detection performance from natural degradation to realize a long operating life.

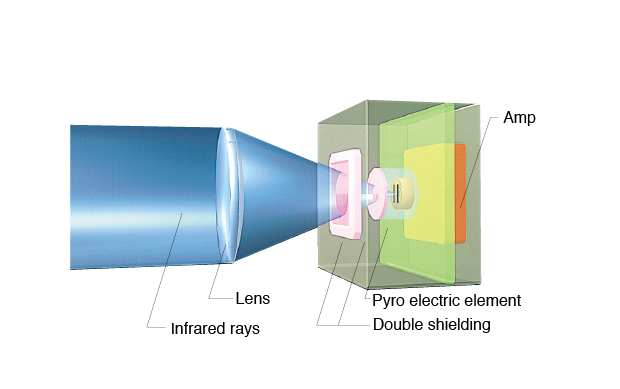

Double conductive shielding
By using our double conductive shielding, the visible light disturbance and RFI can be blocked.
Options
Coverage
Specifications
Dimensions
CDX-AM/NAM
CDX-DAM
|
Model |
CDX-AM |
CDX-NAM |
CDX-DAM |
|---|---|---|---|
|
Detection method |
Passive infrared |
Passive infrared |
Passive infrared |
|
Detector standard |
EN50131-2-2 (Grade 3) |
EN50131-2-2 (Grade 3) |
EN50131-2-4 (Grade 3) |
|
Masking detection method |
AIR type |
AIR type |
AIR type |
|
PIR Coverage |
15 m x 15 m |
24 m x 2 m |
15 m x 15 m |
|
Power supply |
9 to 18 VDC |
9 to 18 VDC |
9 to 18 VDC |
|
Current consumption |
17 mA (normal) / 20 mA (max.) at 12 VDC |
17 mA (normal) / 20 mA (max.) at 12 VDC |
19 mA (normal) / 26 mA (max.) at 12 VDC |
|
Alarm output |
N.C. 28 VDC 0.2A max. |
N.C. 28 VDC 0.2 A max. |
N.C. 28 VDC 0.2 A max. |
|
Tamper switch |
N.C. Opens when cover is removed of the wall tamper switch operates. |
N.C. Opens when cover is removed of the wall tamper switch operates. |
N.C. Opens when cover is removed of the wall tamper switch operates. |
|
Trouble output |
N.C. 28 VDC 0.2 A max. |
N.C. 28 VDC 0.2 A max. |
N.C. 28 VDC 0.2 A max. |
|
Operating temperature |
-10 to +50°C |
-10 to +50°C |
-10 to +50°C |
|
Environmental humidity |
95% max. |
95% max. |
95% max. |
|
RF interference |
No alarm 10 V/m |
No alarm 10 V/m |
No alarm 10 V/m |
|
Mounting height |
1.8 to 2.4 m |
1.8 to 2.4 m |
1.8 to 2.4 m |
|
Weight |
150 g |
150 g |
180 g |
|
Dimensions (H x W x D) |
140 mm x 70 mm x 52.3 mm |
140 mm x 70 mm x 52.3 mm |
140 mm x 70 mm x 52.3 mm |
unit（mm）
