Introducing REDSCAN Lite, an Easy-to-Install High-Performance Intrusion Detection Sensor

Global sales launch, including for data center applications

Optex Co., Ltd. (Headquarters: Otsu City, Shiga Prefecture, President & CEO: Kazuo Ikeda, hereinafter “Optex”) will launch REDSCAN Lite (hereinafter the “product”) worldwide on September 29, 2025.
This product is a high-performance indoor laser scan sensor that can identify an object’s size, distance from the sensor, and speed. In normal operation mode, just one unit provides a 10 × 10 m detection area.The complex installation procedures and adjustments required in previous REDSCAN models have been greatly simplified, so this product is significantly easier to install.

Background of the development

Conventional REDSCAN series products offer multiple functions, but they also require precise on-site installation and adjustment.In overseas markets, where labor shortages and high staff turnover are issues, installation errors often cause false alarms, and sending engineers for re-adjustment can be a heavy burden.

To address such problems, Optex developed this product to minimize complex adjustments and settings, making it possible for any installer to achieve full laser scanning performance.

Product applications

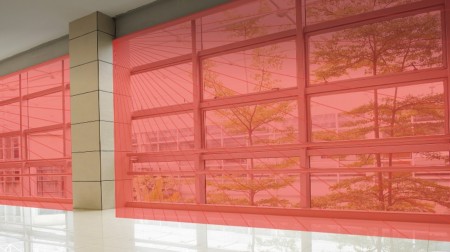

The product monitors critical equipment and indoor-outdoor boundaries using a surface detection area.
When an intrusion is detected, it can trigger an alarm, notify security guards, or link with cameras to identify intruders.

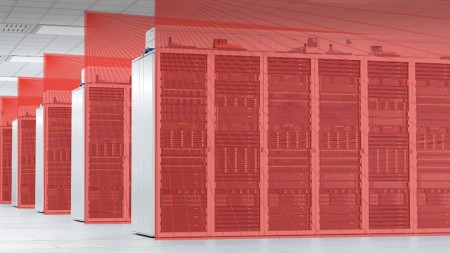

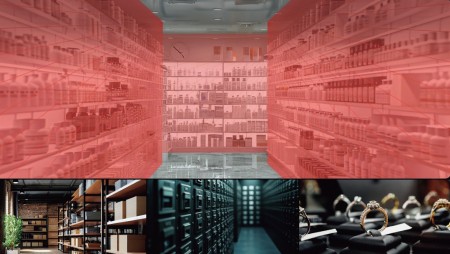

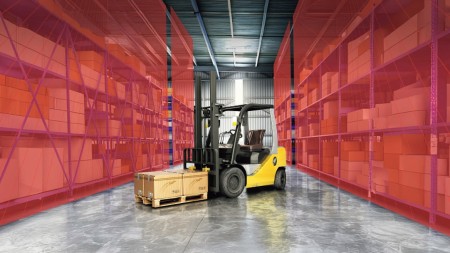

Typical applications include monitoring inside server rooms and research facilities, protecting pharmacies and jewelry stores, and safeguarding art storage or underground warehouses.

Product features

• Hardware

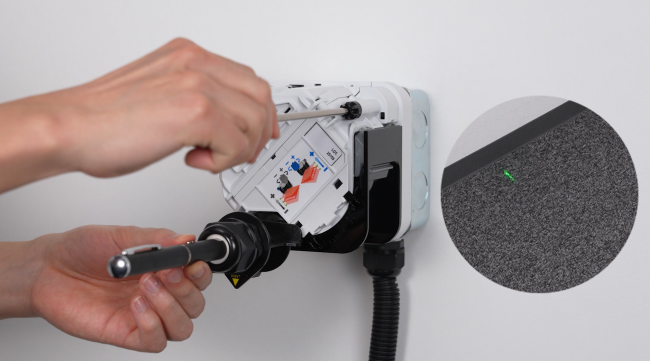

Visualization of the detection area with simple angle adjustment

Infrared laser light is invisible, so angle adjustment of the detection area with conventional models requires special tools.With this product, the detection area can be visualized using a commercially available laser pointer.Angle adjustment is also very simple, and can be done with just a turn of a dial on the device.
This function allows users to start installation even before connecting the power supply.

* Laser pointer and RLS-LAT linkage accessory sold separately.

• Software

Automated adjustment functions

The Auto Area Correction function (patent pending) automatically recognizes walls, floors, and fences, making it possible to set the appropriate detection area size just by turning on the power.
Optex also designed a simple, user-friendly web interface specifically for this product, and included a new adjustment feature called Detection History Analysis (patent pending).This function stores up to 100 detection records and simulates how changing settings would reduce detection events.Simulation results can then be saved and applied directly to the settings.

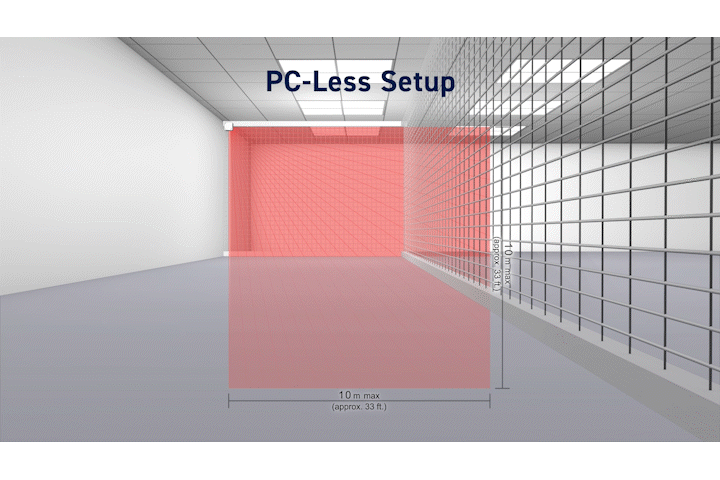

Example of Auto Area Correction

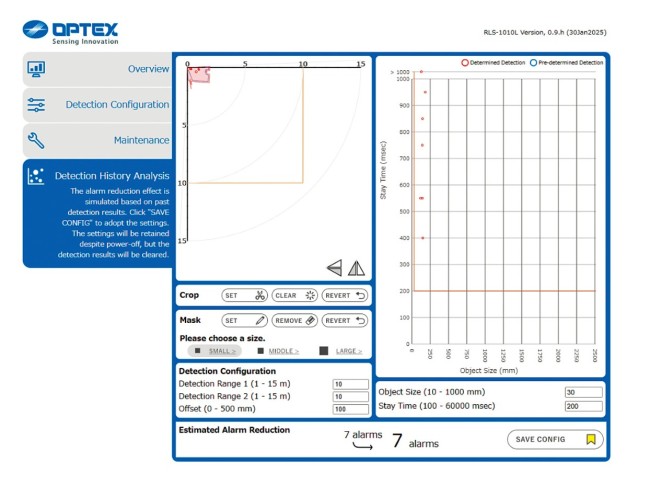

Detection History Analysis interface

Product specifications

Model RLS-1010L
Installation location Indoor
Detection method TOF
Laser protection class Class 1
Power input 10.5-30 VDC, PoE(IEEE 802.3af compliant)
Current draw 500 mA max. (12 VDC), 250 mA max. (24 VDC), 6W max. (PoE)
Mounting method Ceiling mount, Wall mount, Pole mount, Bracket mount
Detection area 10×10 m, 95 degree (approx. 33 × 33 ft)
Detection range Radius 1 to 15 m (approx. 3.3 to 50ft.) at 10% reflectivity
Detection resolution/Response time 0.125 degrees/within 100 msec. to 1 min
Maintenance port Ethernet RJ-45 10BASE-T/100BASE-TX (Auto negotiation)
Communication port RS-485
Output 3 outputs, 28 VDC 0.2 A max. N.C.
Input 1 Non-voltage contact input
Alarm period Approx. 2 second delay timer
Operating temperature -20°C to 50°C ( -4°F to 122°F )
IP rating IP55
Dimensions (HxWxD) 118 × 115 × 96 mm max. (4-5/8 × 4-1/2 × 3-3/4 inch)
Weight 680 g (1.5 lbs.)
* The specifications and design are subject to change without prior notice.

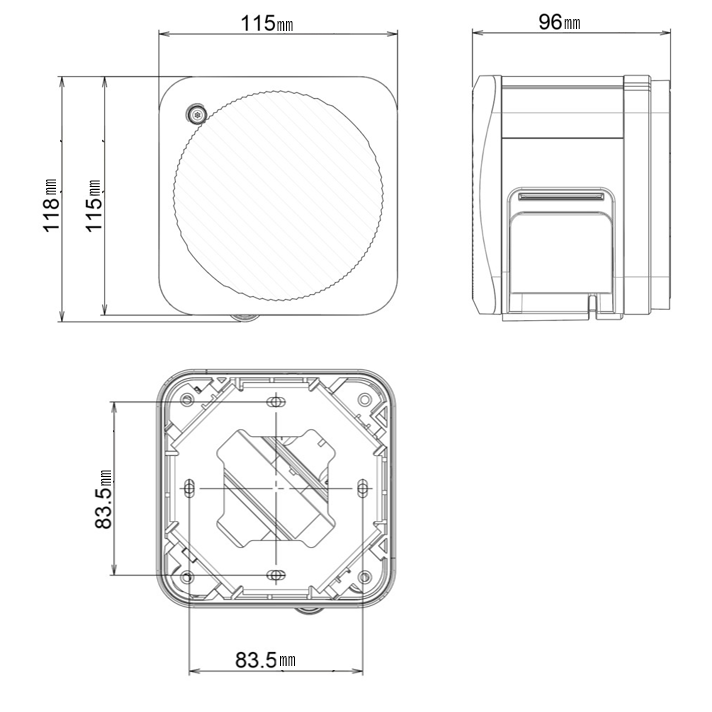

External dimensions

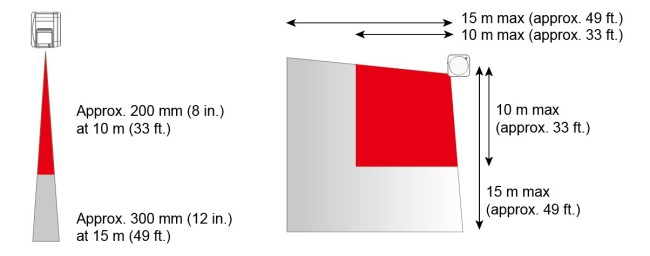

Detection Area

Future prospects

REDSCAN Lite will serve as a new option for easily introducing high-security products, with a particular focus on expanding overseas markets.Optex will continue to solve all kinds of social issues through its business with sensors and help to provide safe, secure, and comfortable lives to people all over the world.
