REDSCAN Lite

Advanced 2D LiDAR sensor for indoor intrusion detection. Simplified installation and setup greatly reduce installation and maintenance costs related to troubleshooting.​

Products Name
RLS-1010L [10 x 10 m]

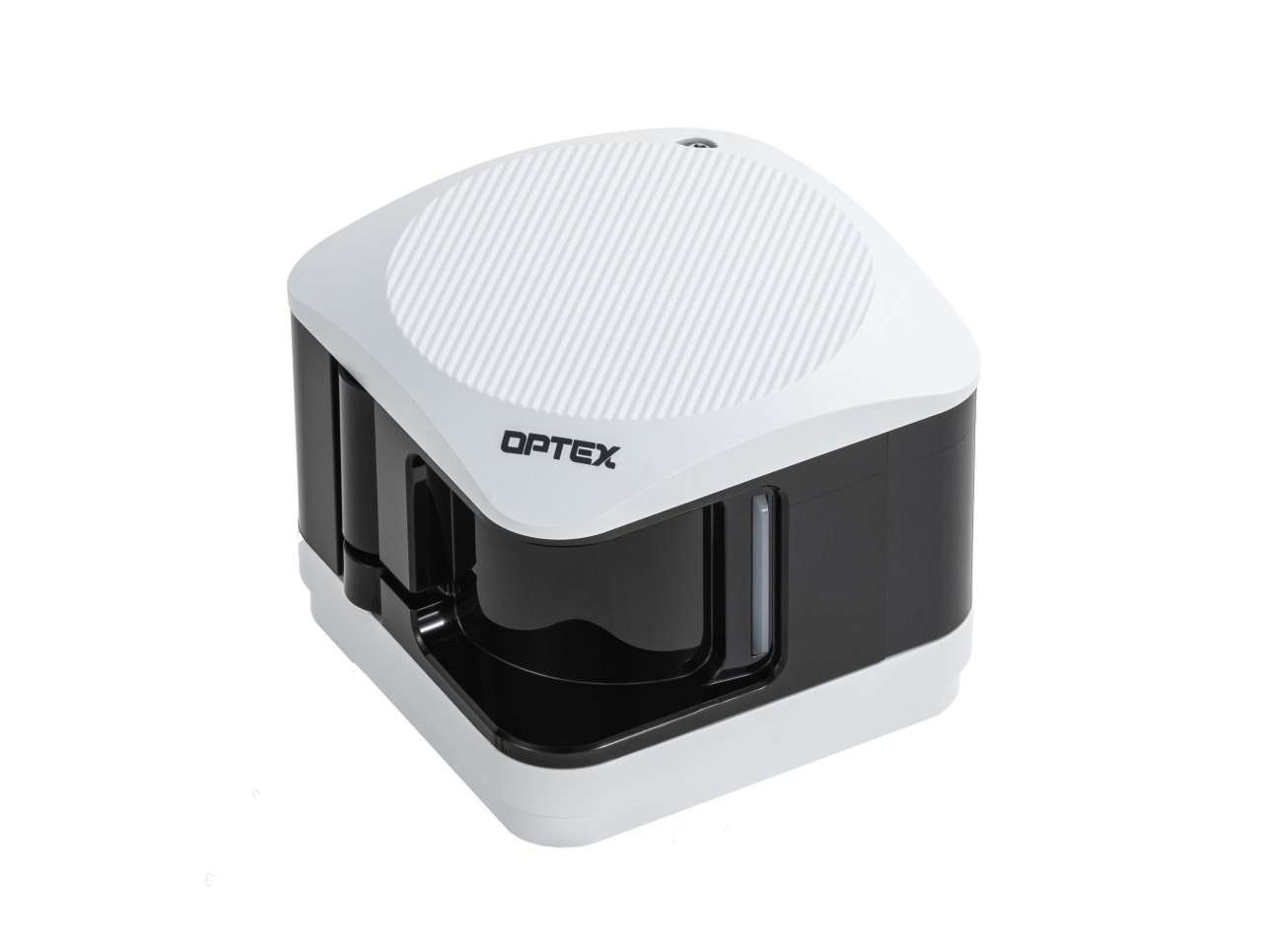

Redscan Lite is a high-performance laser scan sensor that can identify an object's size, distance from the sensor, and speed. In normal mode, a single sensor can be used to cover a 10 x 10 m detection area, ensuring a robust intrusion alert system for indoor.

The installation process has been significantly improved with new features like "Auto-area correction" and "Laser scan path visualization".

EASE OF INSTALLATION

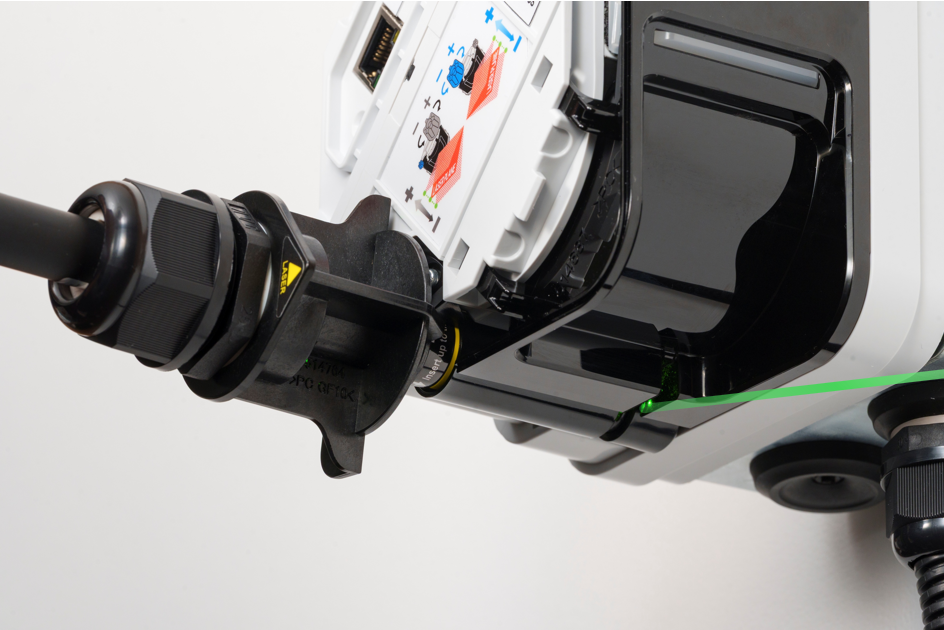

Laser Scanning Path Visualization

RLS-LAT enables visualization of the detection area.
“NO POWER REQUIRED”

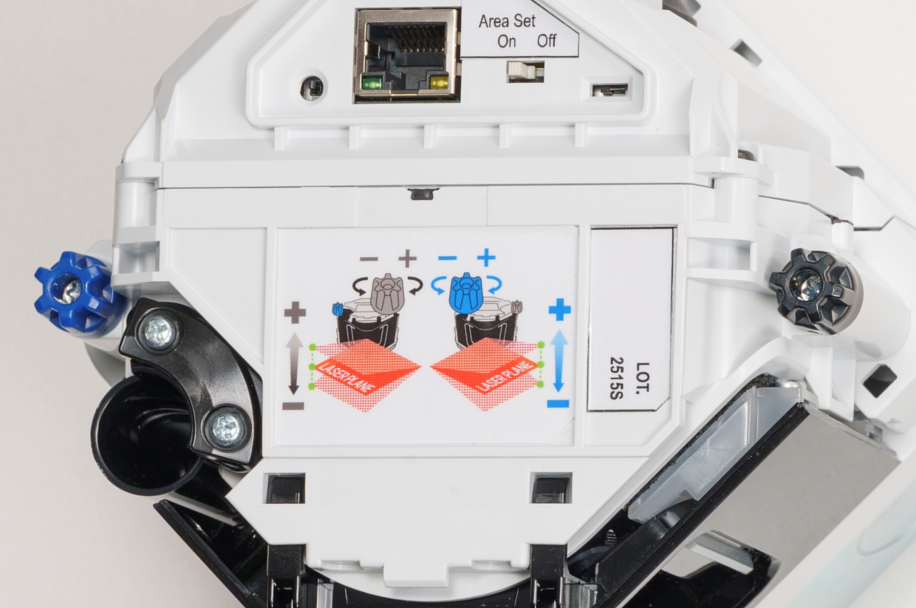

Tool-less Angle Adjustment

The emission angle can be adjusted simply by rotating the side knobs on the range of ±3°.
“NO POWER REQUIRED”

Auto-Area Correction

Automatically adjusts the detection area after power-on to reduce overspill beyond the fence.

MOUNTING IMAGE

Wall mount image
Wall mount
Ceiling mount image
Ceiling mount
Bracket mount image
Option Bracket mount

APPLICATION EXAMPLE

Server rack protection image
Server rack protection
Glass wall protection image
Glass wall protection
Shelf protection image
Shelf protection
Asset protection image
Asset protection

FEATURES

Detection History Analysis

It can be simulated how the detection results would be changed based on modified parameters.

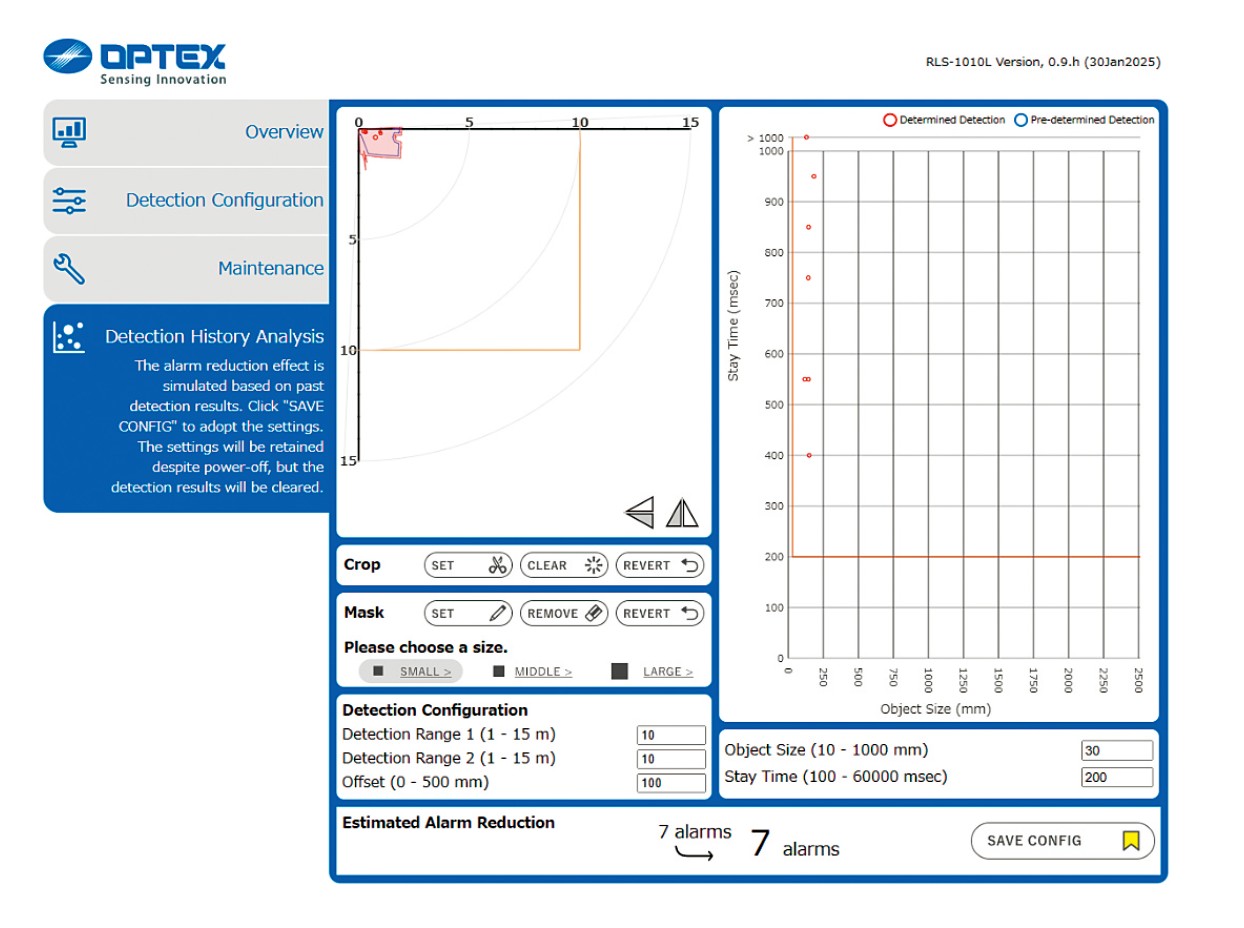

Dynamic History Analysis Tool Image

Feature highlight

  • PC-less Setup
  • External LED Status Indicator
  • Simplified REDSCAN User-Interface
  • A-directional Mounting Plate
  • Selectable PoE or/and DC power supply

Options

Please go to the support page to get catalogs, dimensions, photos, manuals, firmware, setup tools, SDK and other software.

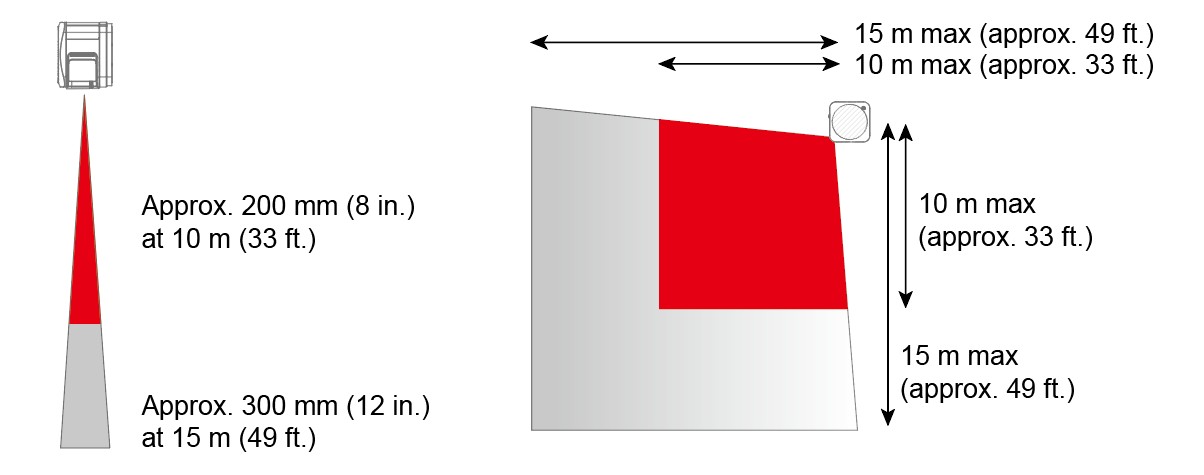

  • Coverage

  • Specifications

  • Dimensions

Model RLS-1010L
Installation location Indoor
Detection method TOF
Laser protection class Class 1
Power input 10.5-30 VDC, PoE(IEEE 802.3af compliant)
Current draw 500 mA max. (12 VDC), 250 mA max. (24 VDC), 6W max. (PoE)
Mounting method Ceiling mount, Wall mount, Pole mount, Bracket mount
Detection area 10×10 m, 95 degree (approx. 33 × 33 ft)
Detection range Radius 1 to 15 m (approx. 3.3 to 50ft.) at 10% reflectivity
Detection resolution/Response time 0.125 degrees/within 100 msec. to 1 min
Maintenance port Ethernet RJ-45 10BASE-T/100BASE-TX (Auto negotiation)
Communication port RS-485
Output 3 outputs, 28 VDC 0.2 A max. N.C.
Input 1 Non-voltage contact input
Alarm period Approx. 2 second delay timer
Operating temperature -20°C to 50°C ( -4°F to 122°F )
IP rating IP55
Dimensions (HxWxD) 118 × 115 × 96 mm max. (4-5/8 × 4-1/2 × 3-3/4 inch)
Weight 680 g (1.5 lbs.)
* The specifications and design are subject to change without prior notice.

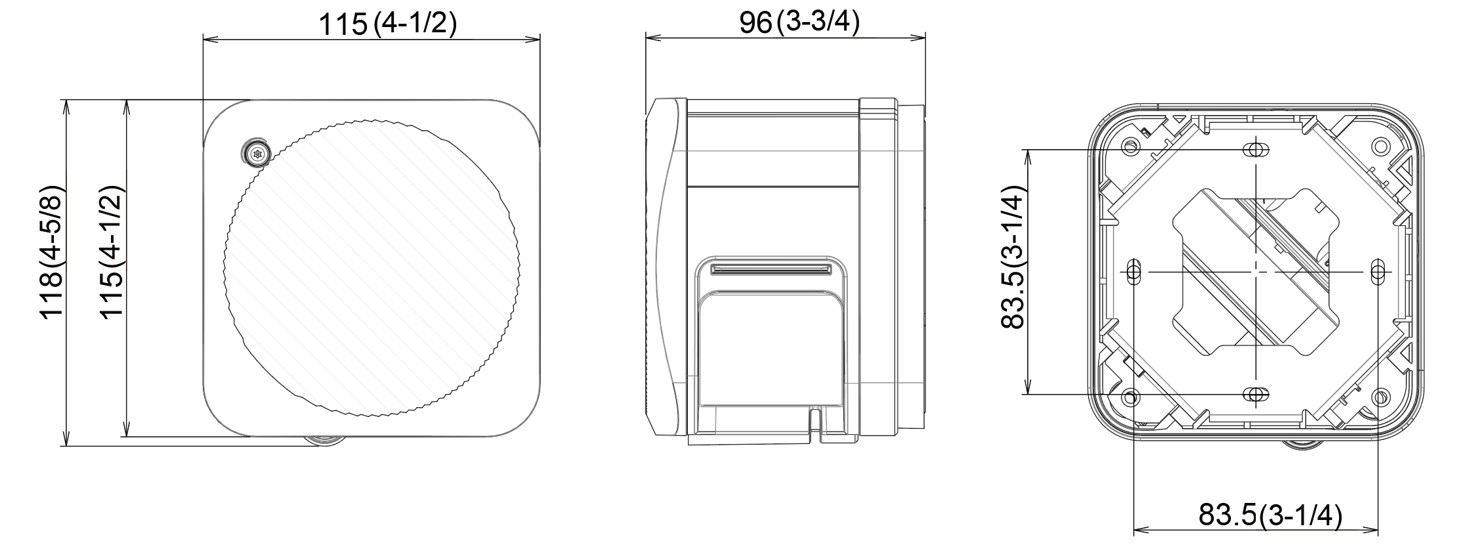

Dimensions

Unit mm(inch)
