Wide Angle Outdoor Detector : QX INFINITY Series

* MW frequency [10.525 GHz(X5), 10.587 GHz(X8), 9.425 GHz(X9)]

Wired model
QXI-ST [Standard]
QXI-DT [Dual technology]
Battery operated model
QXI-R [Standard]
QXI-RDT [Dual technology]

The QXI series is a family of outdoor detectors providing 120 degree wide and 12 m (40 ft.) detection area.
With its sleek and compact housing, the QX Infinity series fits any residential and commercial buildings without ruining its appearance.

Features

  • Sleek & Compact design
  • Selectable Mounting Height & Pattern
  • Anti-blocking Function (QXI-DT only)
  • Easy Open and Close Front Cover
  • Double Conductive Shielding
  • SMDA (Super Multi Dimension Analysis) logic
  • Operating Temperature: QXI-ST/R:-40 to +60°C (-40 to +140°F)
    QXI-DT/RDT:-40 to +45°C (-40°F to +113°F)
  • UV Resistant ASA body
  • Automatic Walk Test Mode
  • Battery Common Use (QXI-R / RDT only)
  • Tough MOD : super tough microwave module (QXI-DT and QXI-RDT only)

Sleek Compact Design



QXI is newly designed with sleek and compact design which is not to ruin the appearance of house and it is hard to be found by intruders who are trying to mask it.

Selectable Mounting Height & Pattern



High mount (2.2 - 2.7 m (7' 3" - 8'11")) or low mount (0.8 - 1.2 m (2' 7" - 4')) can be selected depending on the installation site.

Battery Common Use



A battery (CR123A) power for QXI can be shared with the transmitter in the base of QXI by connecting with the provided Dummy battery and cables.

Easy Access Battery



You can access CR123A battery by simply opening the front cover. It’s a dramatically time saving of every battery changing.

Anti-blocking Function



Anti-blocking features of QXI-DT based on microwave technology which can detect intruders who try to mask the detector.

Easy Open and Close Front Cover



You can easily open and close the front cover without a screw. A screw driver (-) is only required to open it.

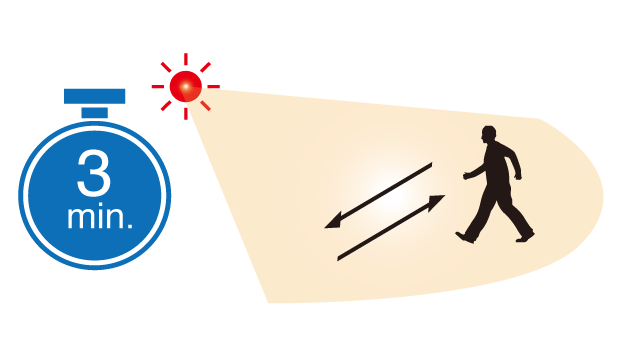

Automatic Walk Test Mode



Walk test mode automatically starts when you close cover and return to normal mode after 3 minutes.

Double conductive shielding



By using our double conductive shielding, the visible light disturbance and RFI can be blocked.

SMDA (Super Multi Dimension Analysis) logic



By analyzing detection patterns and environmental information, SMDA improves immunity against various noise factors such as climate changes and vegetation sways, and can distinguish between the cause of nuisance false alarms and genuine intrusions.

Application Examples

Residence
Residence

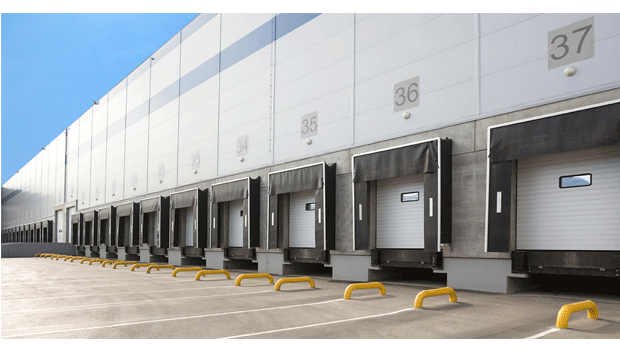

Warehouse
Warehouse

Options

Multi Angle Ceiling Mount Bracket : CA-2C

Multi Angle Ceiling Mount Bracket : CA-2C

For CX-702, LX-402/802N and QXI
Multi Angle Wall Mount Bracket : CA-1W

Multi Angle Wall Mount Bracket : CA-1W

For CX-702, LX-402/802N and QXI

Please go to the support page to get the necessary files in PDF and/or DXF.

  • Coverage

  • Specifications

  • Dimensions

Model QXI-ST QXI-DT QXI-R QXI-RDT
Detection method Passive infrared Passive infrared & Microwave Passive infrared Passive infrared & Microwave
PIR coverage 12.0 m (40') 120°wide
PIR zones Multi level : 40 zones / Pet alley : 18 zones
Detectable speed 0.3 to 2.0 m/s (1' to 6'7"/s)
Sensitivity 2.0℃ ( 3.6°F) at 0.6 m/s
Pet alley Remove lower area detection to avoid small animals.
Power input 9.5 to 16 VDC -
Power source - CR123A (3 V DC) *Not included
Current draw 20 mA max. at 12 VDC 30 mA max. at 12 VDC 9 μA stand-by 11 mA max. at 3 V DC 16μA stand-by 11 mA max. at 3 V DC
Alarm period 2.0 ± 0.5 sec. (delay timer)
Warm up period Approx. 60 sec. (LED blinks)
Alarm output N.C/N.O. switchable, 28 VDC 0.1 A max. N.C/N.O. switchable solidstate switch, 3 V DC 0.01 A max.
Trouble output - N.C. 28 V DC 0.1 A max. N.C/N.O. switchable solidstate switch, 3 V DC 0.01 A max. (with tamper)
Tamper output N.C. 28 VDC 0.1 A max. Open when the cover is opened -
LED indicator [1] Warm-up
[2] Alarm
[3] Walk test end 		[1] Warm-up
[2] Alarm
[3] Walk test end
[4] Blocking detection 		[1] Warm-up
[2] Alarm
[3] Walk test end
Operating temperature -40℃ to +60℃(-40°F to +140°F) -40℃ to +45℃(-40°F to +113°F) -40℃ to +60℃(-40°F to +140°F) -40℃ to +45℃(-40°F to +113°F)
Environmental humidity 95% max.
International protection IP54
Mounting Wall, Ceiling (Outdoor, Indoor)
Mounting height Multi level： 2.2 to 2.7 m (7' 3" to 8'11") / Pet alley： 0.8 to 1.2 m (2' 7" to 4' )
Weight 180 g (6.35 oz) 195 g (6.88 oz) 215 g (7.58 oz) 230 g (8.11 oz)
Accessories [1] Mounting screw (4 x 12 mm) x 2
[2] Lock screw (3 x 12 mm) x 1
[3] Area masking strips 		[1] Dummy battery and connector for ALARM
[2] Connector for TROUBLE
[3] Mounting screw (4 x 12 mm) x 3
[4] Lock screw (3 x 12 mm) x 1
[5] Area masking strips

＊ Specifications and design are subject to change without prior notice.
