24M Long and Narrow Range High Mount Outdoor PIR Detector : HX-80N Series

 24M Long and Narrow Range High Mount Outdoor PIR Detector : HX-80N Series

Wired Model

  • HX-80N[Standard model]
  • HX-80NAM[Active IR anti-masking model]

Battery Operated Model

  • HX-80NRAM[Battery operated model with active IR anti-masking model]

High mount (2.5 m - 3 m) out door PIR with 80 ft (24 m) range

Features

  • Mounting height 2.5-3m
  • Active IR digital anti-masking
  • Flexible detection area setting
    - Flaps for long distance limit
    - Plates for short range masking
  • Intelligent AND logic with unique pyro-element
  • Active IR digital anti-masking (HX-80NAM/NRAM only)
  • Battery box for numerous battery types (HX-80NRAM only)

Intelligent AND detection logic

Catch performance


The HX Series features superb Catch Performance. The most important element in reliable outdoor detector is accuracy to distinguish a human from a small animal. The exclusive pyro element on board enables the HX to project an ideal detection pattern, thus allowing for more accurate detection of humans and less false alarms.

Active IR digital anti-masking


When an object is placed close to the lens surface, for a period of more than 180 seconds, the IR Anti-Masking circuit will activate and generate a trouble signal.

Slope friendliness


Not all outdoor ground is flat like most indoor environments. Steep slopes can cause negative effects on the catch performance feature. The adjustable included bracket enables the HX to maintain the optimal catch performance.

Flaps for long distance limit


To adjust the long range of detection, set the upper and lower flaps.

Plates for short range masking


To adjust the short range of detection. set the masking plates.

Double conductive shielding


By using our double conductive shielding, the visible light disturbance and RFI can be blocked.

Battery box for numerous battery types

Application Examples

Residence
Residence
Construction site
Construction site
Industrial site
Industrial site

Please go to the support page to get the necessary files in PDF and/or DXF.

  • Coverage

  • Specifications

  • Dimensions

Coverage
Model HX-80N HX-80NAM HX-80NRAM
Detection method Passive infrared
Coverage 24.0 m × 2.0 m (80' × 6'7") narrow / 20 zones
Anti-masking - Active IR
PIR distance limit 6.5 m, 10.0 m, 13.0 m, 18.0 m (22', 33', 42', 59')
Detectable speed 0.3 m/s - 1.5 m/s (1'/s - 4'11"/s)
Sensitivity 2.0°C (3.6°F) at 0.6 m/s
Power input 9.5 - 18 VDC 3 - 7.2 VDC Lithium Battery (CR123A×3, CR2×3, 1/2AA×3, 1/2AA×6)
Operating voltage 2.5 - 9 VDC
Detectable speed 0.3 to 2.0 m/s (1' to 6'7/s)
Current draw 35 mA (max) at 12 VDC 40 mA (max) at 12 VDC 30 μA (standby) / 4 mA (max.) at 3 VDC
Alarm period 2.0 ±1 sec
Warm-up period Approx. 60 sec (LED blinks) Approx. 90 sec. (LED blinks)
Alarm output Form C 28 VDC 0.2 A max Form C - Solid State Switch - 10 VDC 0.01 A max
Tamper output N.C. 28 VDC, 0.1 A max. N.C. open when cover is removed. Form C. 28 VDC, 0.1 A max. changes when cover is removed
Trouble output - N.C. 28 VDC, 0.1 A max N.C./N.O. Selectable - Solid State Switch - 10 VDC 0.01 A
Aux input N.C. 28 VDC, 0.1 A max -
LED indicator Red : Warm-up, Alarm Red : Warm-up, Alarm, Trouble Disable : During normal operation. Enable : During WALK TEST or LED SW on. Red : Warm-up, Alarm, Trouble, Low battery
RF Interference No alarm 10 V/m
Operating temperature -20 – +60°C (-4 – +140°F)
Environment humidity 95% max.
International protection IP55
Mounting Wall (Outdoor, Indoor)
Mounting height 2.5 - 3.0 m (8.3 - 10 ft.)
Bracket adjust angle Vertical : ±20° Horizon : ±95°
Weight 720 g (25.4 oz.) 720 g (25.4 oz.) 780 g (27.5 oz.)
Accessories Bracket, Screw (4 × 20 mm) × 4 Bracket, Screw (4 × 20 mm) × 4, Velcro tape × 2, Alarm cable, Battery lead × 2, Dummy battery kit

* Specifications and design are subject to change without prior notice.

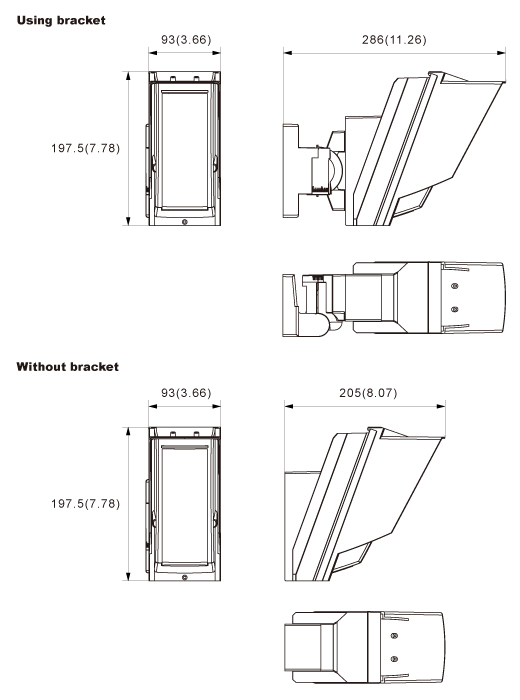

Dimensions

Unit(mm)
