ELITE PRO series
・Active Infrared Technology
・One push setting
・Max. 2.5m mounting height
| Products Name |
|---|
| ELITE PRO |
| ELITE PRO2 |
| ELITE PRO LE |
Color Variations
- Black
ELITE PRO series is innovative safety sensor system for Full and Low Energy Swing Doors.
The newest gyro technology enables quick and easy sensor installation. In addition, the sensor can be installed on either left or right leaf. Its controller has auto-learning system that can recognize the operator’s detection input type, test input, sensors’ installation positions and swing or approach side. With just a single press the setup button on the unit, it start the learning and setup the necessary configurations automatically.
Easy installation and 1 push quick setting case setup time dramatically and relieve door-installers from complicated settings.
Smart-phone app. Can allow further detailed settings and can visualize the detection status.
The lineup and names are as below.
|
Model name |
Configuration |
|---|---|
|
ELITE PRO |

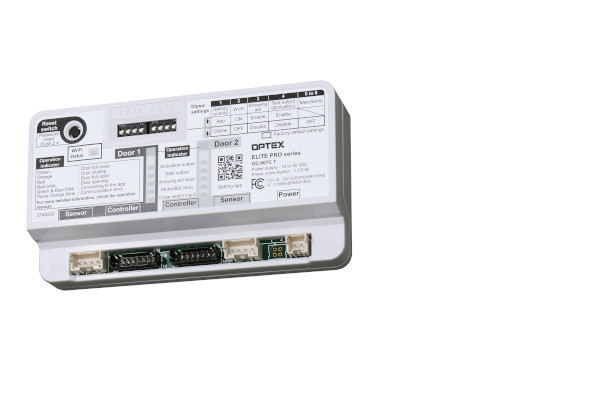

Package of OC-907C T × 1 and OA-607 T × 2 |
|
ELITE PRO2 |
Package of OC-907C T × 1 and OA-607 T × 4 |
|
ELITE PRO LE |
Package of OC-907C T × 1 and OA-607 T × 1 |
Features
- Simple package
All packages have 1 Controller unit. It can connect maximum 4 sensors and recognize how many sensor units are connected and their locations (right or left side of doors, and approach side or swing side) - Easy setup
ELITE PRO has an advanced learning system - Auto Configuration that can recognize the system configurations and status to set the related parameters properly and automatically for easy and quick settings.
If the door is a standard width, the initial setting can be done just by simply pressing the front function switch on any of the sensors for 2 seconds. - Visualized detection area and system status
More detailed settings can be done with a smart device browser. And the web browser shows the detection area and the system status on screen of the smart device.
Detection Area
Specifications
Dimensions
Connection pattern
Charts show the values in the following angle adjustment settings ;
Threshold area (1st row) : +5°
Swing area (2nd,3rd row) : +5°
[mm(feet, inch)]
|
A |
2000 (6'7") |
2300 (7'6") |
2500 (8'2") |
|---|---|---|---|
|
B |
186 (7") |
214 (8") |
233 (9") |
|
C |
360 (1'2") |
414 (1'4") |
450 (1'6") |
|
D |
152 (6") |
175 (7") |
190 (7") |
|
E |
840 (2'9") |
966 (3'2") |
1050 (3'5") |
|
F |
1650 (5'5") |
1898 (6'2") |
2063 (6'9") |
|
G |
252 (10") |
252 (10") |
252 (10") |
|
H |
593 (1'11") |
645 (2'1") |
678 (2'3") |
|
I |
89 (3") |
141 (6") |
174 (7") |
|
J |
911 (3') |
1010 (3'4") |
1076 (3'6") |
|
K |
407 (1'4") |
506 (1'8") |
572 (1'11") |
|
L |
1275 (4'2") |
1428 (4'8") |
1531 (5') |
|
M |
770 (2'6") |
924 (3') |
1027 (3'4") |
|
N |
1684 (5'6") |
1900 (6'3") |
2042 (6'8") |
|
O |
1180 (3'10") |
1395 (4'7") |
1538 (5'1") |
When the sensor system performs an initial setup to its operating environment detection areas may vary slightly from this chart.
|
Door in use |
Swing type automatic doors |
|---|---|
|
Product lineup |
ELITE PRO (OA-607 T × 2, OC-907C T × 1) : For double low energy or single full energy |
|
Usage location |
OA-607 T : Indoors, semi-outdoors |
|
Mounting location |
OA-607 T : Door mount |
|
Supply voltage |
12 to 30 VDC |
|
Power consumption |
OA-607 T : 1.0 W or less |
|
Detection method |
Active infrared reflection (presence detection type) |
|
Detection area |
Threshold area (1st row) : 8 lines × 1 |
|
Detection angle adjustments |
Threshold area (1st row) : -5 to +5° (inside and outside) |
|
Settings |
Browser setting tool/Dipswitches |
|
Wi-Fi |
802.11 b/g/n |
|
Input specifications |
Test input : Optocoupler voltage 5 to 30 VDC, current 6 mA max. (30 VDC), polarity free |
|
Output specifications |
Activation output : Form A relay 50 V, 0.3 A (resistance load) |
|
Mounting height |
2.0 to 2.5 m (6'7" to 8'2") |
|
Minimum door speed |
2°/s |
|
Response time |
< 0.3 s |
|
Operating temperature |
-20 to +55°C (-4 to 131°F) |
|
Protection class |
OA-607 T : IP44 |
|
Color |
OA-607 T : Black |
|
Weight |
OA-607 T : 230 g (8.2 oz) |
* Wi-Fi is registered trademarks of Wi-Fi Alliance.
[inch(mm)]
Door type and connection pattern support are as below. (Illustrations show the door from above.)
- The specifications herein are subject to change without prior notice due to improvements.
- iPhone is registered trademarks of Apple Inc.
- Android is registered trademarks of Google LLC.
- Wi-Fi is registered trademarks of Wi-Fi Alliance.
