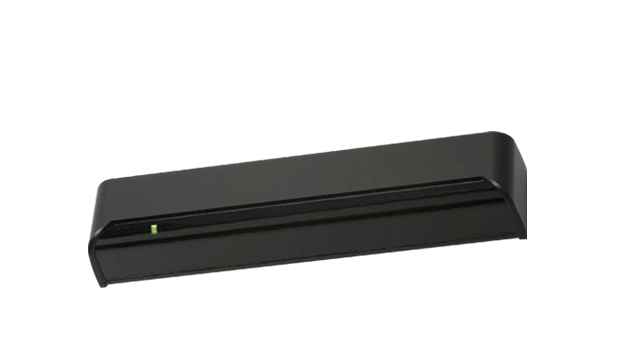

Active infrared sensor OA-PRESENCE TN
- OA-PRESENCE TN(S)
- OA-PRESENCE TN(BL)
Safety
CE
Color variations
-
Silver -
Black
The OPTEX OA-PRESENCE TN is designed to create optimum safety around sliding doors. When using the OA-PRESENCE TN for threshold safety the use of safety beams is no longer mandatory. The OA-PRESENCE TN enables you to install maximum safety in compliance with the latest European and local regulations, including EN 16005 and DIN 18650. The OA-PRESENCE TN has been tested and approved by the German test organization TÜV.
Features
- Side Screen Safety
The OA-PRESENCE TN can be used as a side screen safety sensor. By installing the sensor at the rear end of the door, the OA-PRESENCE TN will secure the side screen area and prevent the doors from hitting someone or something during their opening cycle. - Threshold Safety
The OPTEX OA-PRESENCE TN is the ideal sensor for threshold safety used in combination with external activators like push buttons, security systems, or any kind of activation sensor. By using the OA-PRESENCE TN the threshold is completely secured and prevents the door from closing when it is open or during the closing cycle. - Presence Detection
The active infrared presence detection of the OA-PRESENCE TN can be set very accurately and moved 5° toward or away from the door. When used as a threshold safety sensor the installation of safety beams is no longer mandatory. The sensor detects a person or object and holds the door open for as long as they are in the threshold area, even if they stop or pause. The OPTEX OA-PRESENCE TN has been tested and approved by the German test organization TÜV and complies with DIN 18650 and European norm EN 16005. - Recessed Mount Installation
By installing the OA-PRESENCE TN on a mounting bracket (supplied by the door manufacturer), it is easy to integrate the sensor into the header of the door operator. The sensor is accessible from the bottom so installation and settings can be carried out without removing the operator’s cover.
Detection Area
Specifications
Dimensions
Emitting area
The chart shows the values at depth angle +6°
| Mounting height A | 2000 (6'7'') | 2200 (7'3'') | 2500 (8'2'') | 2700 (8'10'') | 3000 (9'10'') | 3500 (11'6'') |
|---|---|---|---|---|---|---|
| B | 230 (9'') | 250 (10'') | 280 (11'') | 310 (1') | 340 (1'1'') | 390 (1'3'') |
| C | 350 (1'2'') | 390 (1'3'') | 440 (1'5'') | 480 (1'7'') | 530 (1'9'') | 610 (2') |
| D | 590 (1'11'') | 650 (2'2'') | 740 (2'5'') | 800 (2'7'') | 890 (2'11'') | 1030 (3'5'') |
| E | 1210 (3'12'') | 1330 (4'4'') | 1510 (4'11'') | 1630 (5'4'') | 1810 (5'11'') | 2110 (6'11'') |
| F | 1860 (6'1'') | 2050 (6'9'') | 2320 (7'7'') | 2510 (8'3'') | 2790 (9'2'') | 3250 (10'8'') |
| G | 2520 (8'3'') | 2780 (9'1'') | 3150 (10'4'') | 3400 (11'2'') | 3790 (12'5'') | 4420 (14'6'') |
Detection area
To comply with EN 16005, make sure that the detection area is within the values of the chart below.
| A | 2000 (6'7'') | 2200 (7'3'') | 3000 (9'10'') |
|---|---|---|---|
| X | 230 (9'') | 250 (10'') | 340 (1'1'') |
| E | 1020 (3'4'') | 1120 (3'8'') | 1530 (5') |
| G * | 2410 (7'11'') | 2650 (8'8'') | 3600 (11'10'') |
Test conditions required by EN 16005
Floor: Grey paper
Detection object: EN 16005 CA reference body
Sensitivity: Middle
Speed of detection object: 50 mm/sec.
* The values above are those of the Detection area when tested referring to the test conditions of EN 16005.
(The emitting area is as shown in Emitting area above.)
* When installed at higher than 3.0 m (9'10") , EN 16005 requirements are fulfilled only within the area width "G" of 3.6 m (11'10") .
* The actual detection area may become smaller depending on the ambient light, the color/material of the object or the floor as well as the entry speed of the object.
* The sensor may not be activated when the entering speed of the object or a person is slower than 50 mm/sec. or faster than 1500 mm/sec.
| Model | OA-PRESENCE TN |
|---|---|
| Cover color | Silver, Black |
| Mounting height | 2.0 m to 3.5 m (6'7'' to 11'6'') |
| Detection area | See Detection area |
| Detection method | Active infrared reflection |
| Depth angle adjustment | -6° to +6° |
| Power supply (*1) | 12 to 24VAC ±10% (50 / 60Hz) 12 to 30VDC ±10%/DC |
| Power consumption | < 1 W (< 2 VA at AC) |
| Safety input | Opto coupler Voltage 5 to 30 V DC Current 6 mA Max. (30 V DC) |
| Safety output | Opto coupler (NPN) Voltage 5 to 50 V DC Current 100 mA Max. Dark current 600 nA Max. (Resistance load) |
| Operating temperature | -20°C to +55°C (-4°F to 131°F) |
| Operating humidity | < 80% |
| noise level | < 70 dBA |
| Output hold time | < 0.5 sec. |
| Response time | < 0.3 sec. |
| IP rate | IP54 |
| Category | 2 (EN ISO 13849-1: 2015) |
| Performance level | d (EN ISO 13849-1: 2015) |
| ESPE | Type 2 |
| Weight | 250 g (8.8 oz) |
| Accessories | 1 Operation manual 2 Mounting screws 1 Mounting template 1 Area adjustment tool 1 Cable 3 m (9'10'') (8×0.2mm2 AWG24) (*2) |
*1 The sensor has to be connected to a door system which has a SELV circuit.
*2 Overcurrent protection with less than 2 A.
[ mm ( inch ) ]
- The specifications herein are subject to change without prior notice due to improvements.
