Features
Reverse Detection System “R1002“ for Airport
Reverse Detection System R1002 with an unique detection algorithm [ Vector Focal Method ] is designed to detect backward movement of human(s) in a specific area.
The system are suitable for applications to catch a suspicious individual such as airports for an efficient facility management or security.
Proprietary human tracking technology and vector focusing method
Human detection by image recognition
Our technology enables recognition and tracking of persons who appear in the image at high speed and with a high degree of accuracy. Vector information on the shape of a person is calculated, based on which the presence of a person is recognized.
Equipped with direction-determining capability, enabling a wide range of applications
Users can choose necessary functions, according to applications.
These include the detection of persons moving in a given direction (access control/head counting), detection of persons staying in a specific area (access control), and multidirectional measurements (head counting/grasp of traffic flow).
Principle
As the left figure shows, when a passer by crosses two lines of pink (A) and light blue (B) in oppsite directions, a “Reverse” outout will be activated.
- Accurate detection
An unique detection method [Vector Focal Method] grasps and tracks a shape of human sterically. - Reverse detection
Grasp all human movements and detect only backward movement - System corporation
Enable to be connected with an upper layer system by using no-voltage output from the control box.

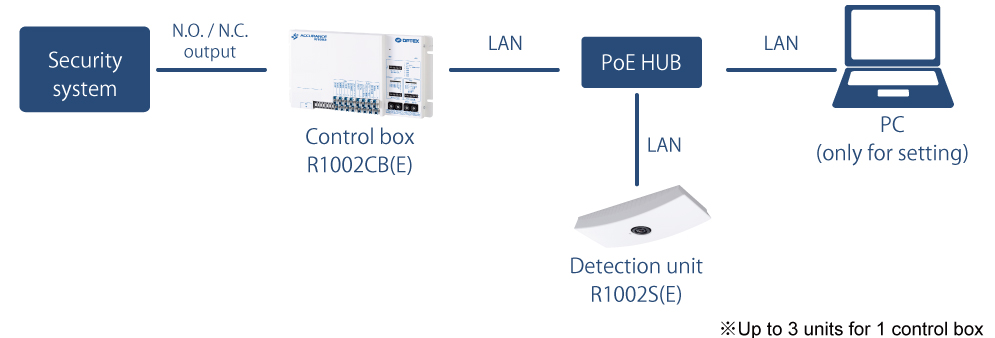

System configuration
Detection area
| Mounting height | Detection area width | Maximum installation intervals | ||
|---|---|---|---|---|
| One unit | Two units | Three units | ||
| 2500 | 1500 | 2700 | 3900 | 1200 |
| 3000 | 2700 | 5100 | 7500 | 2400 |
| 3500 | 3300 | 6300 | 9300 | 3000 |
| 4000 | 4000 | 7700 | 11400 | 3700 |
Specifications
Dimensions
| Detection Method | Vector Focusing Method | ||
|---|---|---|---|
| Detection Accuracy | > 95% (by own criteria) | ||
| Supply Voltage | Power over Ethernet IEEE 802.3 af | ||
| Warm-up time | Approx. 45 sec. | ||
| Power Consumption | Control box | 10 W max. | |
| Detection unit | 10 W max. | Indicator | Control box | Green | Power (lit) |
| Red | Reverse detection (lit) | ||
| Green / Red | Warm-up (lit) / Trouble (blinking) / Communication trouble (alternative blinking) | Detection unit | Green | Power (lit) |
| Red | Reverse detection (lit) | ||
| Orange | Warm-up (lit) / Trouble (blinking) | ||
| Green / Red | Communication trouble (alternative blinking) | ||
| Dimensions | Control box | 265 x 135 x 31 mm | (W × H × D) |
| Detection unit | 193 x 85 x 34 mm | (W × H × D) | |
| Weight | Control box | 800g | |
| Detection unit | 220g | ||
| Operating Temperature | 0～50℃ | ||
| Operating Humidity only under no condensation | < 80% RH | only under no condensation | |
| Operating Illuminance only the outline of an object is shown | 100～20,000lx ※1 | only the outline of an object is shown | |
| Applicable Door Type | Manual Swing Door/Automatic Slide Door | ||
| Install location | Control box | Wall / stationary | Interior only |
| Detection unit | Ceiling | Interior only | |
| Mounting Height | Detection unit | 2.5 to 4.0 m | It may be limited by environmental conditions. |
| LAN wiring | CAT5e or larger | 100 m max. in length | |
| Ethernet | 100Base-T(X) | Protocol : TCP/UDP(IPv4), ARP, ICMP or HTTP | Input terminal ※2 | Disable output Disable reverse detection [1] and [2] |
| Output reset Stop the outputs of reverse detection [1] and [2] | Output terminal ※2 | Reverse detection [1] | MOS FET relay N.O./N.C. no voltage 30 V DC 0.2 A or less (Resistibility load) | Variable timer 0.2 to infinity |
| Reverse detection [2] | Variable timer 0.2 to infinity | ||
| Unit [1] detects Pulse output for reverse detection by unit [1] | Pulse output for the number of reverse detection by unit [1] | ||
| Unit [2] detects Pulse output for reverse detection by unit [2] | Pulse output for the number of reverse detection by unit [2] | ||
| Unit [3] detects Pulse output for reverse detection by unit [3] | Pulse output for the number of reverse detection by unit [3] | ||
| Number of reverse detections | Pulse output for the number of reverse detection | ||
| Error | Output when disable to detect | ||
※1 R1002 always requires 100 lux or more.
※2 Input/output relays can be selected N.O./N.C. by the dipswitch.
The images taken by this product are used only for the judgment processing performed inside this product
and are deleted immediately after such processing.
Camera(Detection unit) R1002S(E)
Control box R1002CB(E)
