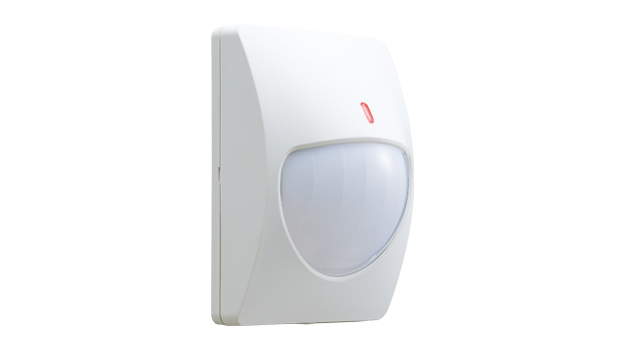

Long Range PIR Detector : CX-702 Series

Wired Model

CX-702[Standard]
CX-702MKII[Double detection zones]

Battery Operated Model

CX-702RS[Battery operated]

The CX-702 series is designed to give extremely stable long-range detection performance in a variety of internal commercial and industrial applications.

Features

Multi-focus technology
Double conductive shielding
Temperature compensation
Sealed optics
Spherical lens design
3-step lens angle adjustment
Dual purpose optics : wide-angle or long-range

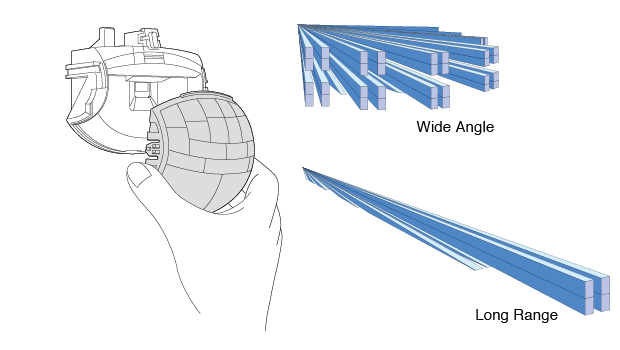

**Dual purpose lens**

By simply rotating the spherical lens, you can select between Wide Angle and Long Range patterns. The CX-702 will instantly provide reliable and precisely accurate detection for each pattern.

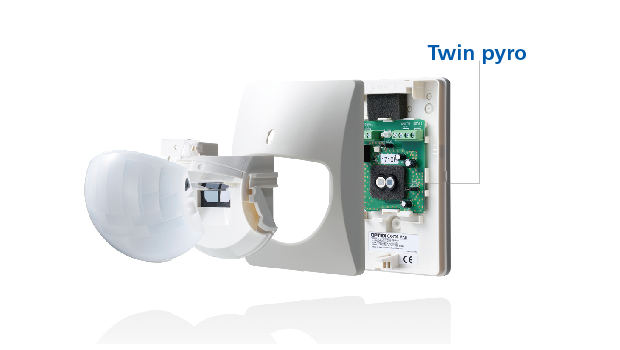

**Twin pyro (CX-702MKII only)**

CX-702MKII creates double detection zones than CX-702.

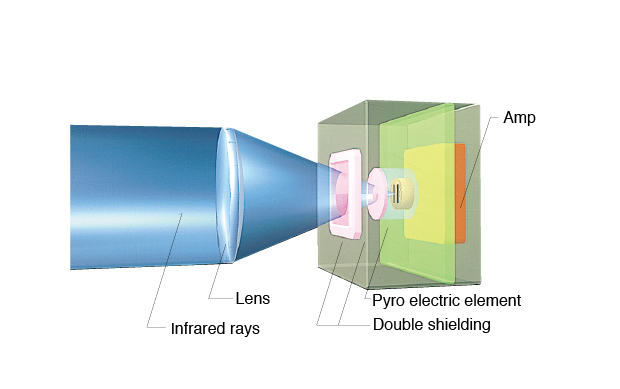

**Double conductive shielding**

By using our double conductive shielding, the visible light disturbance and RFI can be blocked.

Options

Multi Angle Wall Mount Bracket : CA-1W

For CX-702, LX-402/802N and QXI

Multi Angle Ceiling Mount Bracket : CA-2C

For CX-702, LX-402/802N and QXI

Back Cover for CX-702 : BA-70

For CX-702

Please go to the support page to get the necessary files in PDF and/or DXF.

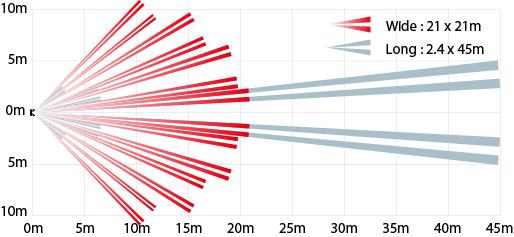

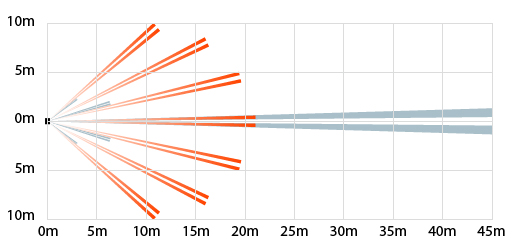

Coverage
Specifications

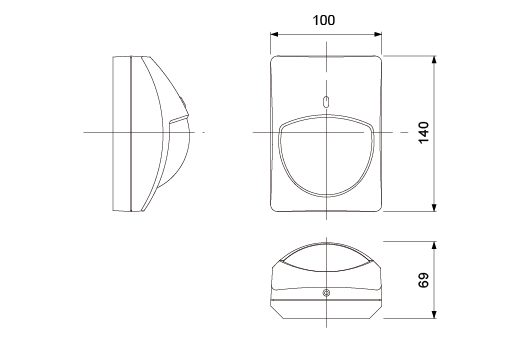

Dimensions

CX-702 / CX-702RS

CX-702MKII

Model	CX-702	CX-702MKII	CX-702RS
PIR coverage / Detection zones	WIDE : 21 m x 21 m 85° 68 zones LONG : 45 m x 2.4 m 22 zones	WIDE : 21 m x 21 m 90° 136 zones LONG : 45 m x 10 m 44 zones	WIDE : 21 m x 21 m 85° 68 zones LONG : 45 m x 2.4 m 22 zones
Sensitivity	1.6°C at 0.6 m/sec. at 2.4 m mounting height	1.6°C at 0.6 m/sec. at 2.4 m mounting height	1.6°C at 0.6 m/sec. at 2.4 m mounting height
Detectable speed	0.3 to 1.5 m/sec.	0.3 to 1.5 m/sec.	0.3 to 1.5 m/sec.
Power supply	9.5 to 16 VDC	9.5 to 16 VDC	3 to 9 VDC alkaline batttery or lithium battery
Current consumption	11 mA (max.) at 12 VDC	11 mA (max.) at 12 VDC	5 μA (standby) 10 mA (walktest, LED on)
Alarm period	Approx. 2.5 sec.	Approx. 2.5 sec.	Approx. 2.5 sec.
Alarm output	N.C. 28 VDC 0.2 A max.	N.C. 28 VDC 0.2 A max.	Form C 10 VDC 0.0 1A max.
Alarm interval	-	-	Succeeding signals are not output even though detection occurs within 2 min. after the first alarm.
Tamper switch	N.C, opens when cover is removed. 28 VDC 0.1 A max.	N.C, opens when cover is removed. 28 VDC 0.1 A max.	Form C 28 VDC 0.1 A max.
Pulse count	Approx. 20 sec. 2 or 4	Approx. 20 sec. 2 or 4	Approx. 20 sec. 2 or 4
Warm-up period	Approx. 60 sec.	Approx. 60 sec.	Approx. 90 sec.
LED indicator	Alarm condition	Alarm condition	Alarm condition
Operating temperature	-20°C to +50°C	-20°C to +50°C	-10°C to +50°C
Environmental humidity	95% max.	95% max.	95% max.
RF interference	No Alarm 30 V/m	No Alarm 30 V/m	No Alarm 20 V/m
Mounting height	1.5 to 3.6 m	1.5 to 3.6 m	1.5 to 3.6 m
Weight	200 g	200 g	200 g
Dimensions (H x W x D)	140 mm x 100 mm x 69 mm	140 mm x 100 mm x 69 mm	140 mm x 100 mm x 69 mm

unit（mm）
